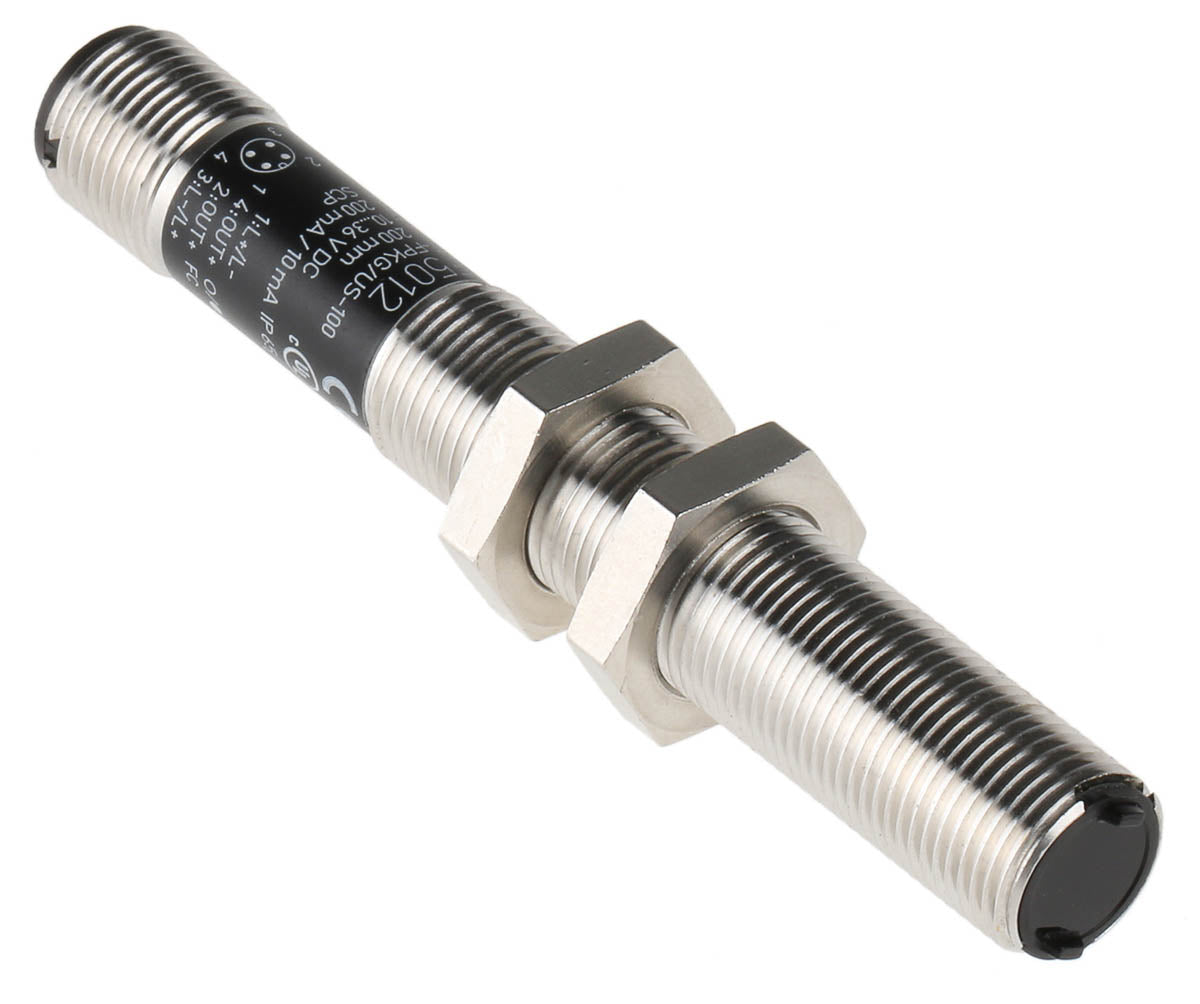

ifm OF5012, Diffuse Photoelectric Sensor, Barrel Sensor, 1 mm → 200 mm Detection Range

Name: ifm OF5012, Diffuse Photoelectric Sensor, Barrel Sensor, 1 mm → 200 mm Detection Range
Brand: ifm
SKU: OF5012
Availability: OutOfStock

Part Number : OF5012

Availability: in stock

Detailed Description
Specifications
Downloads

M12x1 compact

Robust metal housing
3-cable DC technology
Diagnostics option using LED display
Function control output (for plug devices)
Brightness control (ON with receiving light) and darkness control (ON with "no light") can be programmed.

Brand	ifm
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	1 mm → 200 mm
Output Type	PNP
Electrical Connection	M12 Connector
Maximum DC Voltage	36V
Light Source	Infrared
IP Rating	IP65
Maximum Current	200 mA
Minimum Operating Temperature	-25°C
Housing Material	Nickel Plated Brass
Maximum Operating Temperature	+60°C

ifm OF5012, Diffuse Photoelectric Sensor, Barrel Sensor, 1 mm → 200 mm Detection Range

DOWNLOAD CATALOG

OF5012 OF5012 Diffuse reflection sensor Data Sheet 0900766b8104075a
