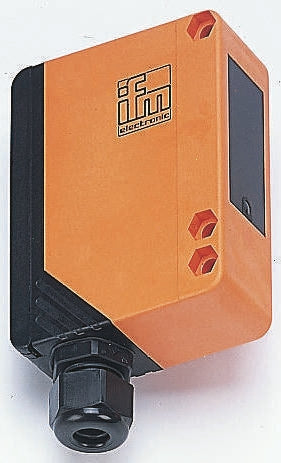

ifm OA0101 | Photoelectric Sensor | 50 m, Relay
The ifm OA0101 is a photoelectric sensor with detection range 50 m, output type Relay and electrical connection Cable.
- Sensor Style: Block
- Detection Type: Through Beam
- Detection Range: 50 m
- Output Type: Relay
- Electrical Connection: Cable
- Maximum AC Voltage: 250V
- Maximum DC Voltage: 250V
- Light Source: Infrared
- Detailed Description
- Specifications
- Downloads
Systems with relay outputs
Freely connectable using terminal connections
For DC and AC voltage
Light switching (ON when light received) and dark switching (ON with "no light") available separately thanks to relay with changeover
ELS: one-way light barrier, 50 m range, adjustable
RLS: reflective light barrier (triple reflector/reflector film to be ordered separately), range 10m, adjustable
Reflective light barrier with polarising filter (to prevent distracting reflections; triple reflector/reflector film to be ordered separately), range 8 m, adjustable
| Brand | ifm |
| Detection Type | Through Beam |
| Detection Range | 50 m (164.0 ft) |
| Sensor Style | Block |
| Output Type | Relay |
| Electrical Connection | Cable |
| Light Source | Infrared |
| Maximum DC Voltage | 250V |
| IP Rating | IP65 |
| Maximum Current | 3 A |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PPO |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Maximum AC Voltage | 250V |
