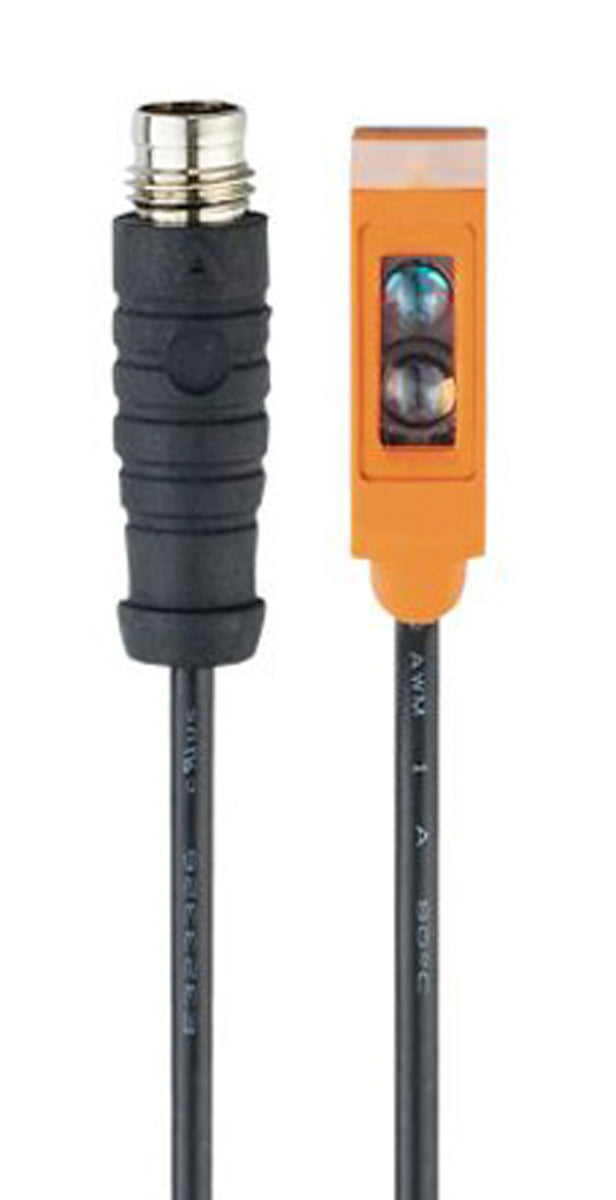

ifm O8H208, Diffuse Photoelectric Sensor, Block Sensor, 1 mm → 30 mm Detection Range IO-LINK

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm O8H208, Diffuse Photoelectric Sensor, Block Sensor, 1 mm → 30 mm Detection Range IO-LINK

Name: ifm O8H208, Diffuse Photoelectric Sensor, Block Sensor, 1 mm → 30 mm Detection Range IO-LINK
Brand: ifm
SKU: O8H208
Availability: OutOfStock

Part Number : O8H208

Availability: Sold out

Detailed Description
Specifications
Downloads

O8 Series Miniature Photoelectric Sensors

ifm electronic O8 series miniature photoelectric sensors for applications where space is at a premium, such as assembly and robotics. The O8 series sensors feature a compact but can achieve very long detection ranges. Background suppression is extremely reliable and precise, even for the detection of very small, flat or reflective objects.

Features and Benefits

Up to 3 m detection range

Precise, colour-independent 80 mm background suppression

Reliable detection of dark or shiny surfaces

IO-Link communication

Visible red light

IP65 rated

Reverse polarity and overload protection

Brand	ifm
Sensor Style	Block
Detection Type	Diffuse
Detection Range	1 mm → 30 mm
Output Type	PNP
Electrical Connection	M8 Connector
Maximum DC Voltage	30V
Communication Protocol	IO-LINK
Terminal Type	M8 Connector
Light Source	LED
IP Rating	IP65, IP67
Maximum Current	20 mA
Interface	IO-Link
Mounting Type	Cable Mount
Minimum Operating Temperature	-25°C
Housing Material	ABS, Stainless Steel
Series	O8
Maximum Operating Temperature	+60°C
Standards Met	CE, EN 60947-5-2
