ifm O5H504, Diffuse Reflection Photoelectric Sensor, Rectangular Sensor, 50 → 1800 mm Detection Range

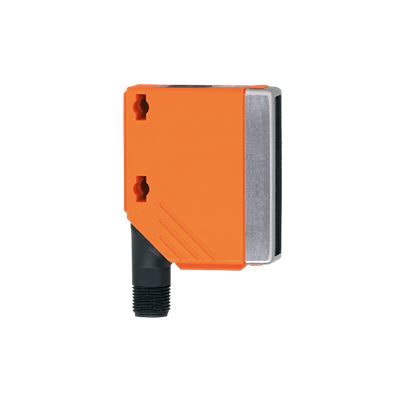

Name: ifm O5H504, Diffuse Reflection Photoelectric Sensor, Rectangular Sensor, 50 → 1800 mm Detection Range
Brand: ifm
SKU: O5H504
Availability: OutOfStock

Part Number : O5H504

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Diffuse reflection sensor with background suppression designed to enhance detection accuracy in various applications. This innovative sensor employs red light technology to effectively discern objects against complex backgrounds, ensuring precise readings even within challenging environments. With capabilities tailored for a range of surfaces, including black, grey, and white objects, it guarantees reliable performance whether mounted on machinery or integrated into automated systems. The durable construction with IP67 protection ensures resilience against harsh conditions, making it an ideal choice for both indoor and outdoor settings. This sensor not only meets technical demands but also simplifies user interaction through programmable features and built-in safeguards.

Offers a range detection capability of 50 to 1800 mm optimising versatility in various settings
Utilises background suppression technology to minimise interference from extraneous objects
Features a teach function to adapt sensitivity to specific operational needs
Includes short circuit and overload protection ensuring operational safety
Equipped with a robust housing rated at IP67 for protection against dust and water ingress
Boasts a low current consumption of just 25 mA enhancing energy efficiency
Offers a maximum switching frequency of 1000 Hz for swift response times
Facilitates a straightforward installation with M12 connector compatibility

Brand	ifm
Sensor Style	Rectangular
Detection Type	Diffuse Reflection
Detection Range	50 → 1800 mm
Output Type	NPN
Electrical Connection	M12 Connector
Switching Mode	Light / Dark switching
