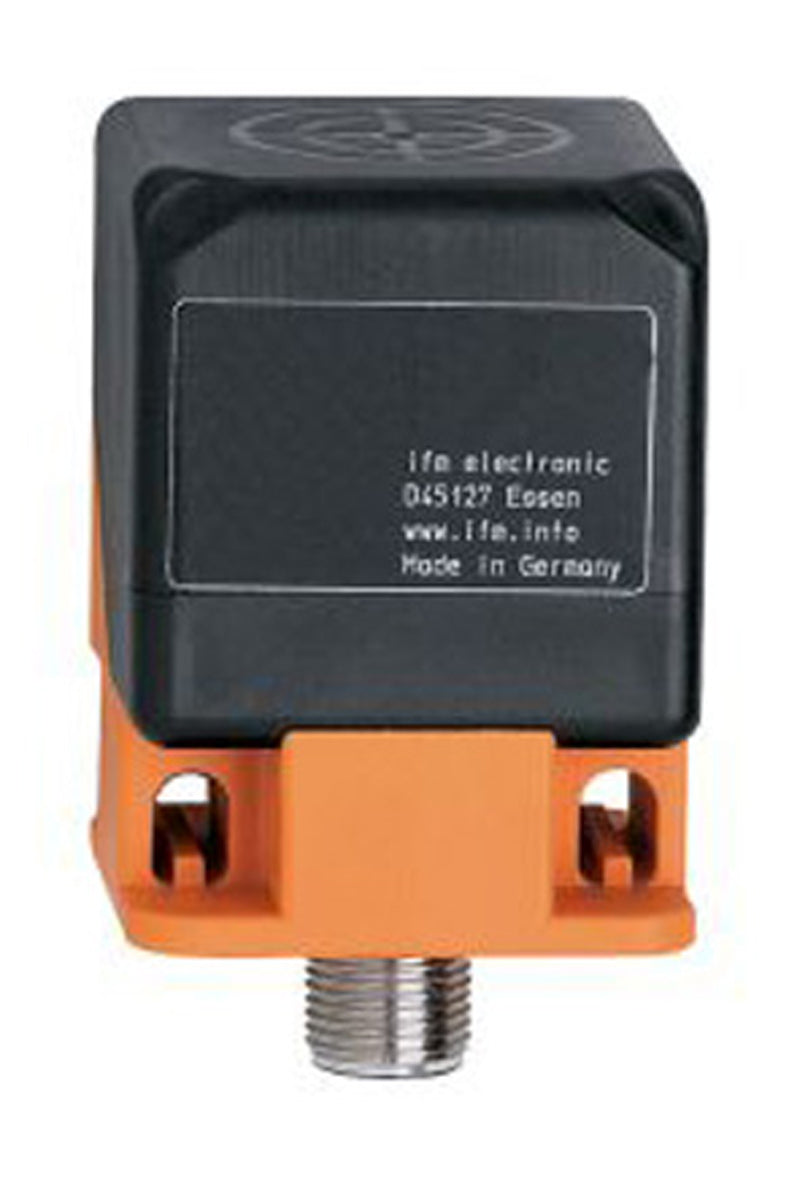

ifm IM5172, Inductive Block Proximity Sensor, 21 mm Detection, PNP/NPN NO/NC, 10 → 30 V dc

Name: ifm IM5172, Inductive Block Proximity Sensor, 21 mm Detection, PNP/NPN NO/NC, 10 → 30 V dc
Brand: ifm
SKU: IM5172
Availability: OutOfStock

Part Number : IM5172

Availability: Sold out

Detailed Description
Specifications

IFM IM5 Rectangular Inductive Proximity Sensors

Inductive sensors are nowadays indispensable for industrial usage. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.

M12 connector
Electromagnetic-field immune
5 position selectable sensing face

Brand	ifm
Sensor Technology	Inductive
Detection Range	21 mm
Body Style	Block
Digital Switching Output Type	PNP/NPN
Output Function	NO/NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	40mm
Mounting Type	Flush
Width	40mm
Housing Material	Polyamide
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	66mm
Short Circuit Overload Protection	Yes
Standards Met	CE, cULus, DIN EN 60947-5-2, EAC, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, IEC 61131-9
Reverse Polarity Protection	Yes
Switching Frequency	100 Hz
Shielding	Unshielded
