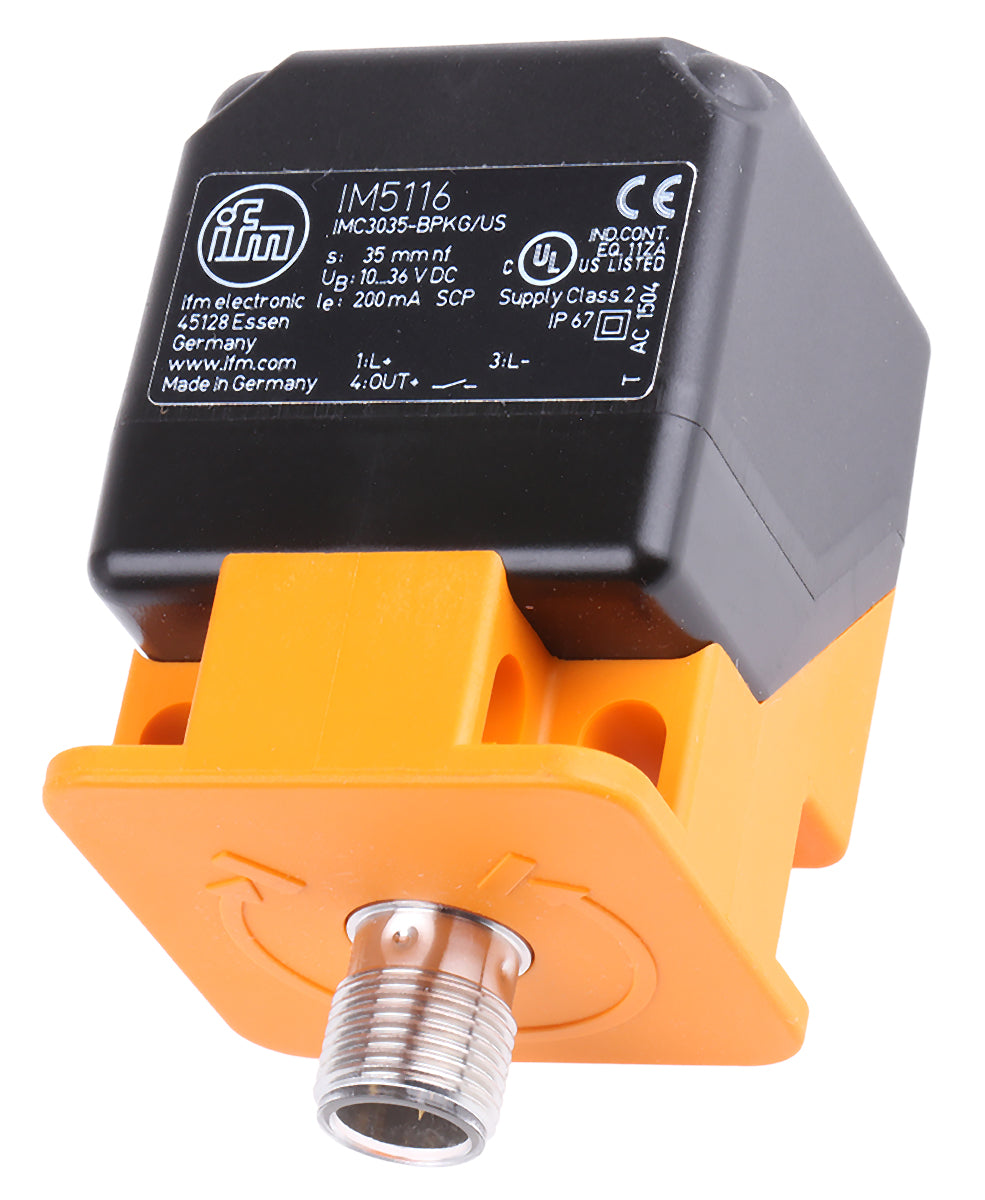

ifm IM5116, Inductive Block Proximity Sensor, 35 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IM5116, Inductive Block Proximity Sensor, 35 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IM5116
Availability: OutOfStock

Part Number : IM5116

Availability: Sold out

Detailed Description
Specifications

Inductive proximity switch, type IM 51XX

Switching distance 35 mm (nb) IM5116, 20 mm (b) IM5115
Variable direction of sensor field
Consists of mounting unit and interchangeable functional unit that can be mounted quickly and in various ways
Connection via rotatable M12 plug connection
Switching frequency 50 Hz (IM5116), 300 Hz (IM5115)

Brand	ifm
Sensor Technology	Inductive
Detection Range	35 mm
Body Style	Block
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	54mm
IP Rating	IP67
Mounting Type	Non-Flush
Width	40mm
Housing Material	Polyamide
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Shielding	Unshielded
Switching Frequency	80 Hz
Reverse Polarity Protection	Yes
Short Circuit Overload Protection	Yes
Switching Current	200 mA
