ifm IM5022, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO/NC, 10 → 36 V dc

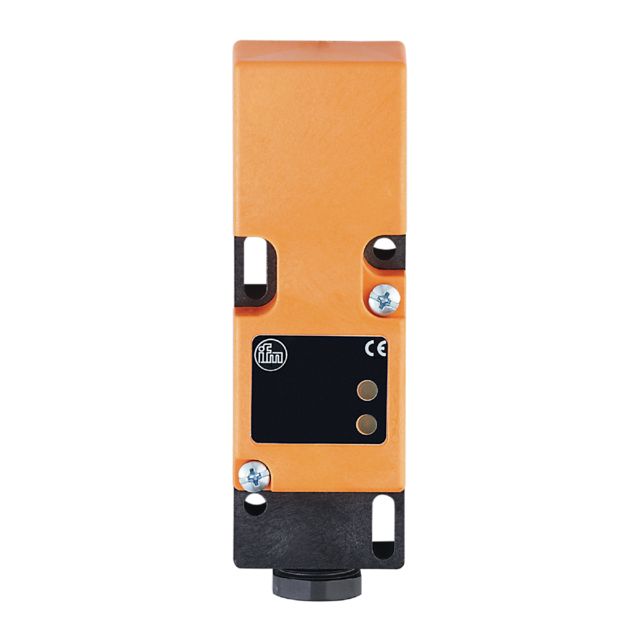

Name: ifm IM5022, Inductive Rectangular Proximity Sensor, 15 mm Detection, PNP NO/NC, 10 → 36 V dc
Brand: ifm
SKU: IM5022
Availability: OutOfStock

Part Number : IM5022

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor offers reliable detection through advanced electrical design, ensuring precise measurements for various applications. With PNP output function selectable between normally open and normally closed, this sensor excels in environments demanding versatility. The sensor is engineered for robust performance, featuring a protection class of II and designed to withstand ambient temperatures ranging from -25°C to 80°C. Its compact rectangular housing not only provides durability but is also suitable for flush mounting. Ideal for diverse industrial settings, it guarantees accuracy and efficiency in every use, effectively facilitating automation processes with minimal disruption.

Long sensing range for use in conveying
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	15 mm
Output Function	NO/NC
Digital Switching Output Type	PNP
Connection Type	Screw Terminal
Supply Voltage	10 → 36 V dc
IP Rating	IP65
Length	40mm
Mounting Type	Flush
Series	IM5
Switching Frequency	250 Hz
Switching Current	250 mA
Shielding	Shielded
