ifm II0104, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20

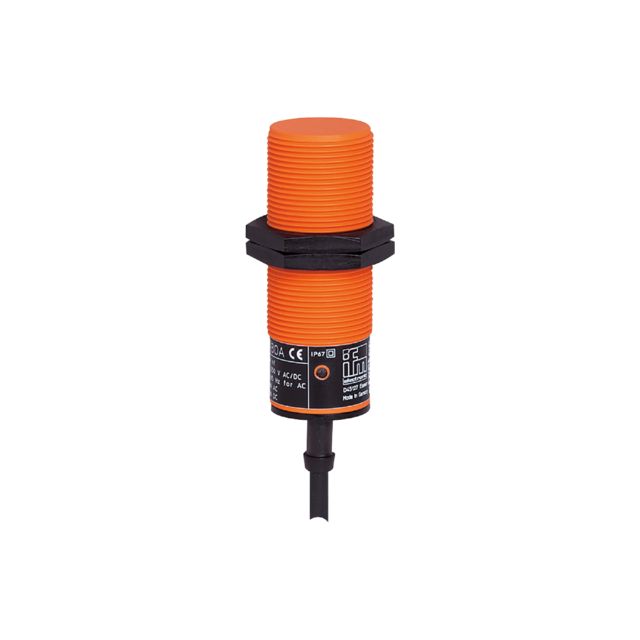

Name: ifm II0104, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: II0104
Availability: OutOfStock

Part Number : II0104

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Inductive Sensor is a robust and reliable solution, ideally suited for industrial applications requiring precise detection of metallic objects. Designed to operate effectively in challenging conditions, this sensor provides a sensing range of 15mm and is housed in a durable threaded casing. With its compact dimensions of M30 x 1.5 and a length of 81mm, it seamlessly integrates into existing machinery without compromising performance. The product features a yellow LED display for clear switching status indication, allowing for easy monitoring. Built to endure a wide ambient temperature range from -25°C to 80°C, this sensor is also rated to IP67 for superior protection against dust and water ingress.

With combined AC/DC output stage
Large operating voltage range
Two-wire technology
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	15 mm
Digital Switching Output Type	2-Wire
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	10m
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
Length	81mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Current	100 mA
Series	II
Switching Frequency	50 Hz
Shielding	Unshielded
