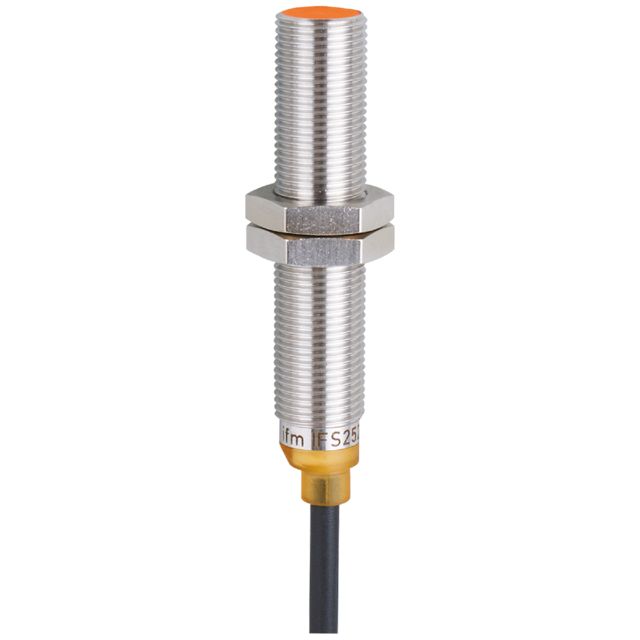

ifm IFS287 | Inductive Proximity Sensor | 4 mm, 10 → 30 V dc

Name: ifm IFS287 | Inductive Proximity Sensor | 4 mm, 10 → 30 V dc
Brand: ifm
SKU: IFS287
Availability: OutOfStock

Part Number : IFS287

The ifm IFS287 is an inductive proximity sensor with detection range 4 mm, supply voltage 10 → 30 V dc and IP65, IP66, IP67, IP68, IP69K protection.

Thread Size: M12
Sensor Technology: Inductive
Detection Range: 4 mm
Body Style: Threaded Barrel
Digital Switching Output Type: NPN
Output Function: NO
Cable Length: 5m
Connection Type: Pre-Cabled

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered for precision in diverse industrial and mobile applications. Designed with an increased sensing range, it ensures reliable performance in factory automation settings. The device features a robust threaded housing and meets high protection standards, making it suitable for challenging environments. With a sensing range of 4 mm and compatibility with various materials, this sensor enhances operational efficiency. Its sophisticated technology also includes reverse polarity and overload protection, along with superior vibration resistance, making it an indispensable component for your automation needs.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	NPN
Output Function	NO
Cable Length	5m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	60mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Flush
Series	IFS
Switching Current	100 mA
Switching Frequency	700 Hz
Shielding	Shielded
