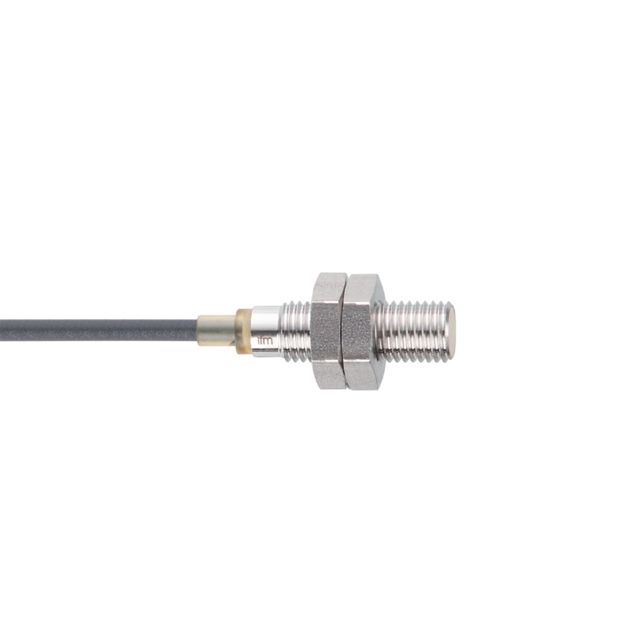

Name: ifm IES240, Inductive Threaded Barrel Proximity Sensor, M8, 3 mm Detection, PNP NC, 10 → 30 V dc
Brand: ifm
SKU: IES240
Availability: OutOfStock

ifm IES240, Inductive Threaded Barrel Proximity Sensor, M8, 3 mm Detection, PNP NC, 10 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IES240, Inductive Threaded Barrel Proximity Sensor, M8, 3 mm Detection, PNP NC, 10 → 30 V dc

Part Number : IES240

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor boasts exceptional performance and reliability for industrial and mobile applications. Designed for flexibility, its increased sensing range makes it suitable for use in challenging environments, including factory automation and lubrication tasks. The sensor features robust construction with stainless steel housing, ensuring durability even under extreme conditions. Enhanced by its PNP output function and reverse polarity protection, the sensor operates effectively in a variety of settings. With a temperature tolerance spanning from -40°C to 85°C, it caters to diverse operational demands. Users can expect seamless integration into existing systems, supported by comprehensive electrical connections and compatibility with various applications.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	3 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	27.5mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Flush
Shielding	Shielded
Series	IES
Switching Frequency	1.5 kHz
Switching Current	100 mA
