ifm IES234 | Inductive Proximity Sensor | 3 mm, 10 → 30 V dc

Part Number : IES234

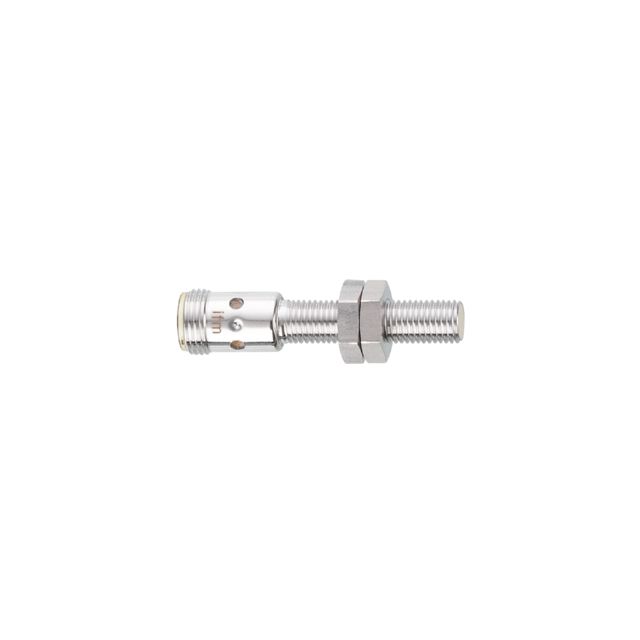

The ifm IES234 is an inductive proximity sensor with detection range 3 mm, supply voltage 10 → 30 V dc and IP65, IP66, IP67, IP68, IP69K protection.

Thread Size: M8
Sensor Technology: Inductive
Detection Range: 3 mm
Body Style: Threaded Barrel
Digital Switching Output Type: NPN
Output Function: NO
Connection Type: M12
Supply Voltage: 10 → 30 V dc

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered to deliver robust and reliable performance across various industrial applications. Designed with a threaded type housing, its compact structure allows for seamless integration into existing systems without compromising efficiency. With an exceptional sensing range and built-in protection against reverse polarity, this sensor guarantees optimal functionality even in demanding environments. The advanced electrical design features a normally open output function, making it ideal for factory automation and mobile applications where precise detection is vital. Its high vibration and shock resistance further ensure that it stands the test of time in rigorous operating conditions, providing consistent results when you need them most.

Suitable for industrial and mobile applications
Suitable for cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	3 mm
Body Style	Threaded Barrel
Digital Switching Output Type	NPN
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP66, IP67, IP68, IP69K
Length	50mm
Mounting Type	Flush
Shielding	Shielded
Switching Current	100 mA
Series	IES
Switching Frequency	1.5 KHz
