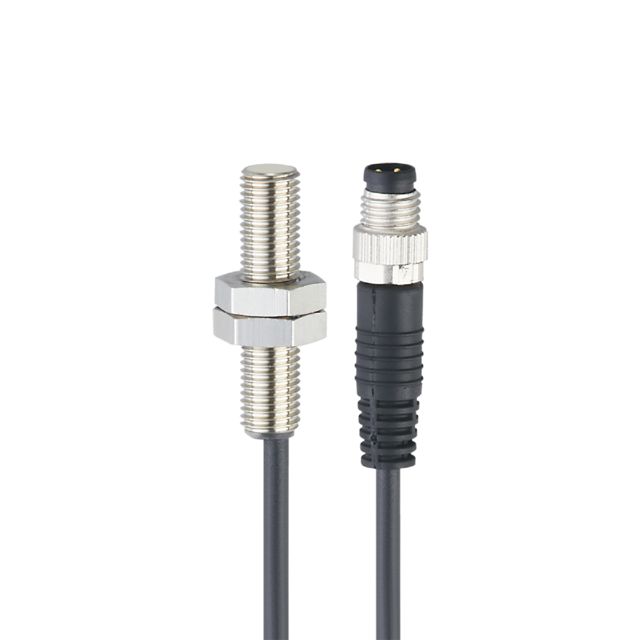

ifm IE5388 | Inductive Proximity Sensor | 2 mm, NC

Name: ifm IE5388 | Inductive Proximity Sensor | 2 mm, NC
Brand: ifm
SKU: IE5388
Availability: OutOfStock

Part Number : IE5388

The ifm IE5388 is an inductive proximity sensor with detection range 2 mm, output function NC and supply voltage 10 → 30 V dc.

Thread Size: M8
Sensor Technology: Inductive
Detection Range: 2 mm
Body Style: Threaded Barrel
Digital Switching Output Type: PNP
Output Function: NC
Cable Length: 800mm
Connection Type: M8

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor designed to meet the demands of modern automation applications. This compact yet robust sensor boasts an impressive sensing range of up to 2mm, making it ideal for precision detection in tight spaces. Its PNP electrical design ensures reliable switching performance, while the normally closed output function enhances safety and efficiency in operational environments. Constructed with a threaded type housing, installation is straightforward and flexible, accommodating both flush and non-flush mounting. With a wide operating temperature range of -25 to 70°C and robust IP67 protection, the IE5388 is built to withstand harsh conditions, ensuring longevity and consistent performance. This sensor is not just a simple detector

it provides essential overload and short-circuit protection, along with reverse polarity safeguards, ensuring your system's integrity is maintained.

Particularly short housing
For use where space is restricted
Space-saving cable with M8 connector
Robust metal housing for use in harsh industrial environments
Very high switching frequency

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Cable Length	800mm
Connection Type	M8
Supply Voltage	10 → 30 V dc
Length	35mm
IP Rating	IP67
Mounting Type	Flush
Series	IE5
Shielding	Shielded
Switching Current	200 mA
Switching Frequency	850 Hz
