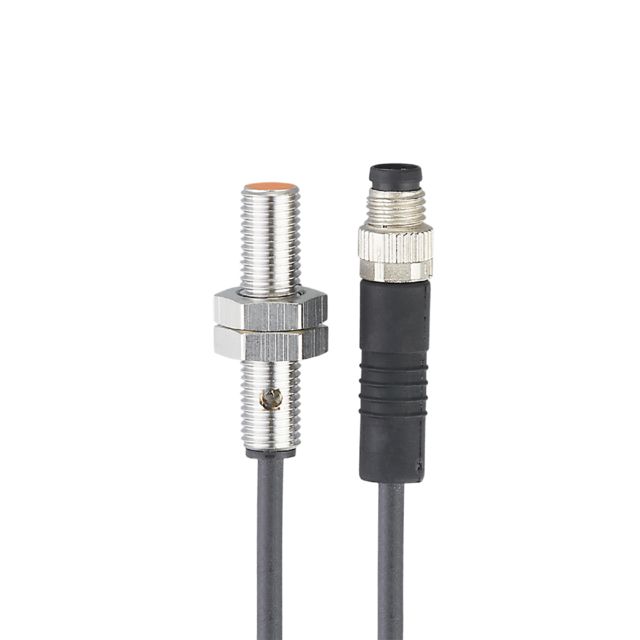

ifm IE5385 | Inductive Proximity Sensor | 1 mm, 10 → 30 V dc

Name: ifm IE5385 | Inductive Proximity Sensor | 1 mm, 10 → 30 V dc
Brand: ifm
SKU: IE5385
Availability: OutOfStock

Part Number : IE5385

The ifm IE5385 is an inductive proximity sensor with detection range 1 mm, supply voltage 10 → 30 V dc and IP67 protection.

Thread Size: M8
Sensor Technology: Inductive
Body Style: Threaded Barrel
Detection Range: 1 mm
Digital Switching Output Type: PNP
Output Function: NO
Cable Length: 2m
Connection Type: Pre-Cabled

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor embodies precision and reliability in sensing applications. Designed for use in diverse industrial environments, this sensor excels in detecting metallic objects without direct contact, ensuring both safety and efficiency. Its robust construction features a threaded type housing, making it ideal for flush mounting. It not only meets high performance standards but also incorporates advanced protection features like reverse polarity, overload, and short-circuit protection, ensuring sustained functionality and longevity. This sensor is also equipped with a clear LED indicator for easy monitoring, making it a valuable component for various automation processes.

Particularly short housing
For use where space is restricted
Space-saving cable with M8 connector
Robust metal housing for use in harsh industrial environments
Very high switching frequency

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	1 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	35mm
IP Rating	IP67
Mounting Type	Flush
Switching Current	200 mA
Series	IE5
Switching Frequency	750 Hz
Shielding	Shielded

ifm IE5385 | Inductive Proximity Sensor | 1 mm, 10 → 30 V dc
