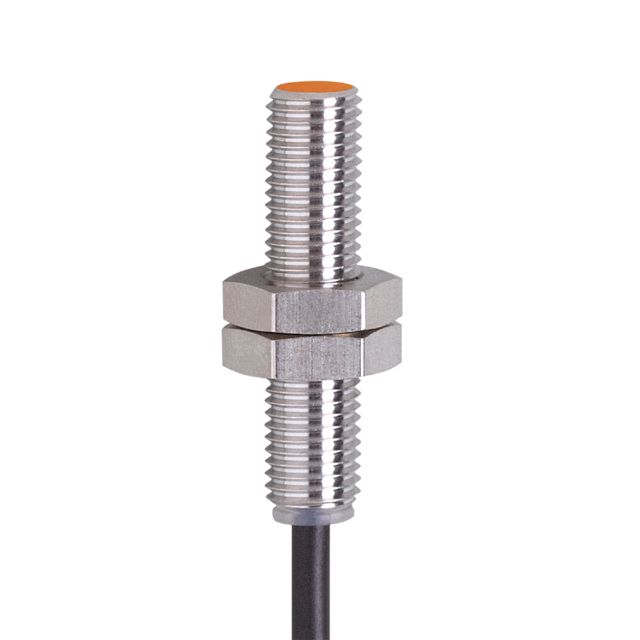

ifm IE5249 | Inductive Proximity Sensor | 2 mm, 10 → 36 V dc

Name: ifm IE5249 | Inductive Proximity Sensor | 2 mm, 10 → 36 V dc
Brand: ifm
SKU: IE5249
Availability: OutOfStock

Part Number : IE5249

The ifm IE5249 is an inductive proximity sensor with detection range 2 mm, supply voltage 10 → 36 V dc and IP67 protection.

Thread Size: M8
Sensor Technology: Inductive
Detection Range: 2 mm
Body Style: Threaded Barrel
Output Function: NO
Digital Switching Output Type: PNP
Connection Type: Pre-Cabled
Cable Length: 3m

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is specifically designed for reliable detection in a diverse range of industrial applications. This innovative sensor excels at sensing metallic objects within a specified range, featuring a robust threaded housing that promotes easy installation. Operating in a wide voltage range, it is ideally suited for various electrical designs and optimised for performance in challenging environments. Its compact dimensions and durable construction make it perfect for flush mounting, ensuring versatility without compromising on space. Enhanced with advanced features, including short-circuit and overload protection, this sensor guarantees longevity and efficiency, making it a standout choice for discerning professionals seeking quality and dependability.

Particularly short housing
For use where space is restricted
Space-saving connection technology
Long sensing range for high uptime
Very high switching frequency

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	3m
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	38mm
Mounting Type	Flush
Shielding	Shielded
Switching Frequency	1 KHz
Series	IE5
Switching Current	200 mA
