ifm IE5082, Inductive Threaded Barrel Proximity Sensor, M8, 1 mm Detection, NPN NO, 10 → 36 V dc

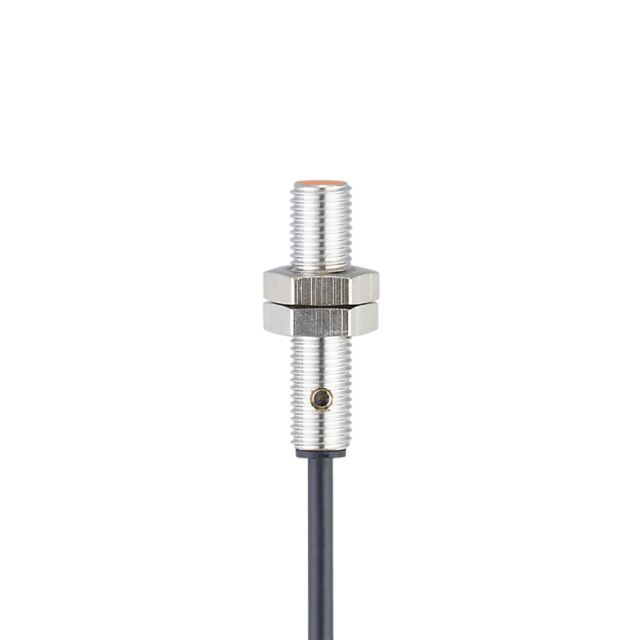

Name: ifm IE5082, Inductive Threaded Barrel Proximity Sensor, M8, 1 mm Detection, NPN NO, 10 → 36 V dc
Brand: ifm
SKU: IE5082
Availability: OutOfStock

Part Number : IE5082

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor represents a fusion of precision and reliability, optimised for seamless integration in a variety of industrial applications. Designed with an NPN output function and normally open switching, this sensor boasts a sensing range of 1 mm, making it an ideal choice for detecting metallic objects in close proximity. Its robust thread design, coupled with excellent environmental protection rated at IP67, ensures performance even in demanding conditions.

Particularly short housing
For use where space is restricted
Space-saving connection technology
Robust metal housing for use in harsh industrial environments
Very high switching frequency

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	1 mm
Digital Switching Output Type	NPN
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	35mm
Mounting Type	Flush
Shielding	Shielded
Switching Frequency	750 Hz
Series	IE5
Switching Current	200 mA
