ifm ID0014, Inductive Rectangular Proximity Sensor, 50 mm Detection NO, 20 → 250 V ac/dc, 20 → 250 V

Name: ifm ID0014, Inductive Rectangular Proximity Sensor, 50 mm Detection NO, 20 → 250 V ac/dc, 20 → 250 V
Brand: ifm
SKU: ID0014
Availability: OutOfStock

Part Number : ID0014

Availability: Sold out

Detailed Description
Specifications

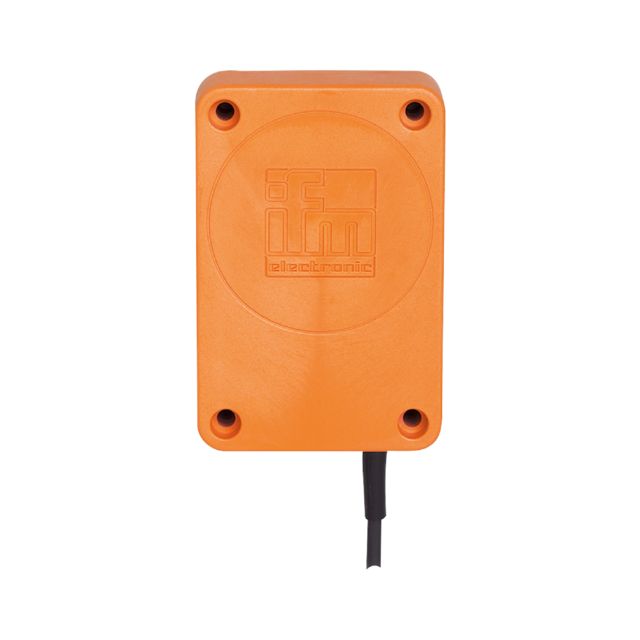

The ifm electronic inductive sensor is designed for precision and reliability in sensing applications, featuring a robust rectangular housing that ensures durability in various environments. Engineered to sense metallic objects within a 50mm range, it is ideal for machine automation, robotics, and any system requiring accurate proximity detection. With an operating temperature range from -25°C to 80°C, this sensor maintains exceptional performance across diverse conditions. The thoughtfully constructed design incorporates minimal load current requirements while expertly managing leakage currents, making it an efficient choice for modern industrial demands. Its IP65 protection rating confirms that it can withstand dust and low-pressure water jets, increasing its versatility in challenging settings.

Very long sensing range
Easy setting of the sensing range via potentiometer
Large active sensor face
With combined AC/DC output and two-wire technology
Robust housing for use in harsh industrial environments

Brand	ifm
Sensor Technology	Inductive
Detection Range	50 mm
Body Style	Rectangular
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
IP Rating	IP65
Length	120mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Frequency	35 Hz
Series	ID0
Switching Current	100 mA
