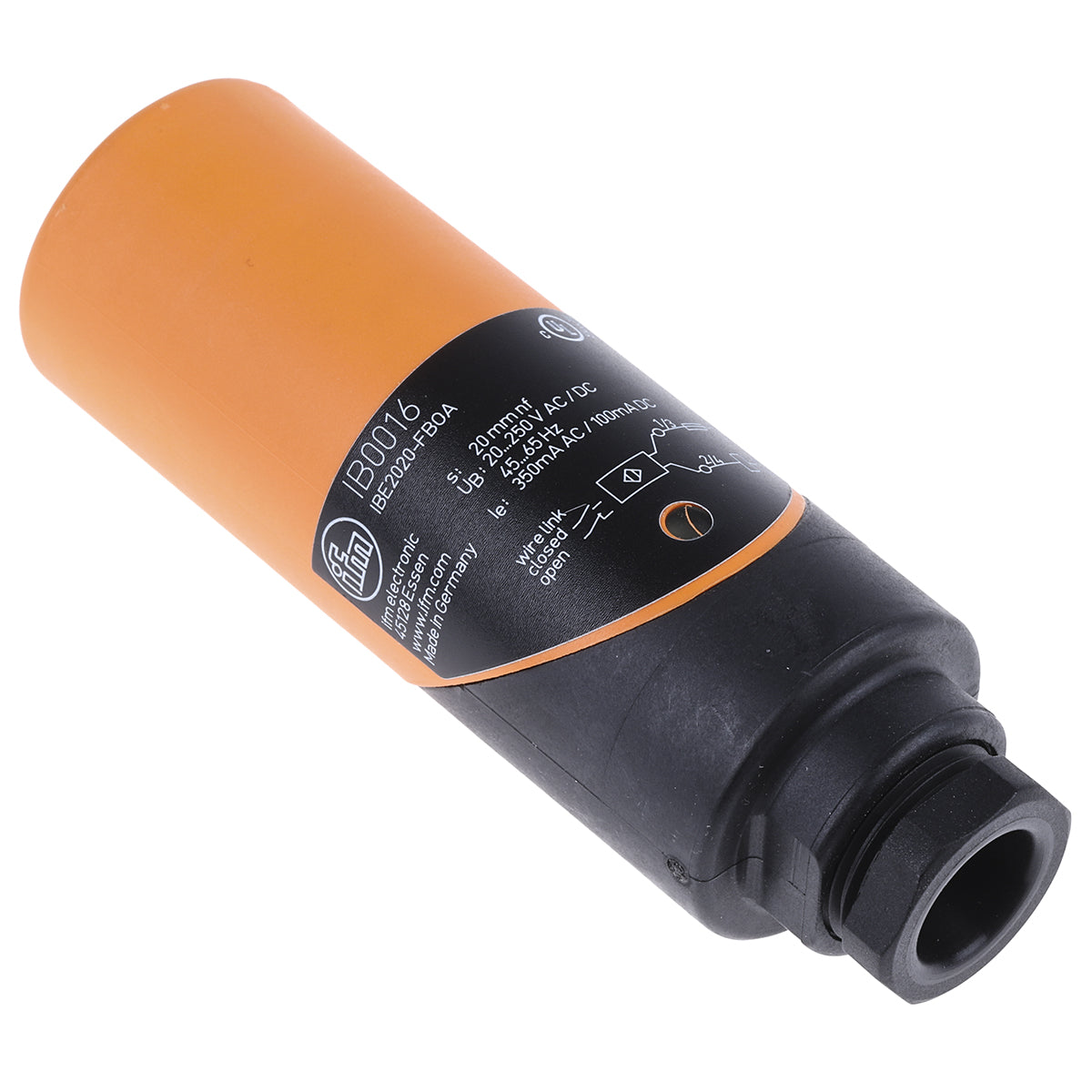

ifm IB0016, Inductive Threaded Barrel Proximity Sensor, 20 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IB0016, Inductive Threaded Barrel Proximity Sensor, 20 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc

Name: ifm IB0016, Inductive Threaded Barrel Proximity Sensor, 20 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc
Brand: ifm
SKU: IB0016
Availability: OutOfStock

Part Number : IB0016

Availability: Sold out

Detailed Description
Specifications

Ø 20 mm and 34 mm

Switching distance 10 mm (nb) for Ø 20 mm type
Switching distance 20 mm (nb) for Ø 34 mm type
AC / DC types for direct and alternating voltage
N/O / N/C output function programmable for AC / DC types
Cable outlet can be mounted straight or angled at 90°
Connection via connection terminals
Type Ø 20 mm DC also available with 2 m PVC cable
Fixing bracket included

Brand	ifm
Sensor Technology	Inductive
Detection Range	20 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO/NC
Connection Type	Screw Terminal
Supply Voltage	20 → 250 V ac/dc
Length	98mm
IP Rating	IP65
Mounting Type	Non-Flush
Width	34mm
Housing Material	PBT
Maximum DC Voltage	250V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Maximum AC Voltage	250V
Maximum Switching Frequency	50Hz
Switching Current	100 mA, 250 mA
Maximum Operating Temperature	+80°C
Switching Frequency	50 Hz
