HIOKI CM4141 | AC Clamp Meter | 2000 A True RMS, slim jaw
Genuine Hioki CM4141 clamp meter from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.
Part No. CM4141
Product Overview

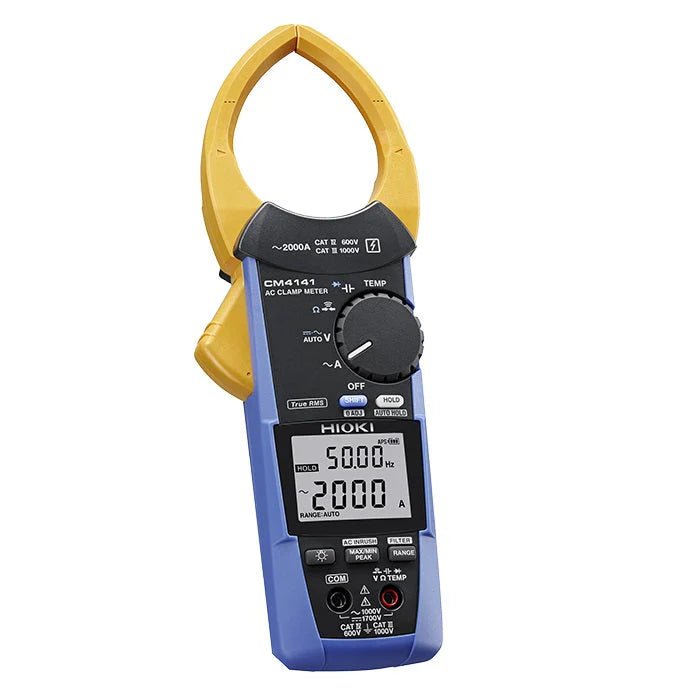

The Hioki CM4141 is a 2000 A AC True RMS clamp meter designed for electrical troubleshooting, maintenance and high-current field measurement. Its uniquely slim jaw profile helps technicians access conductors in crowded distribution boards and other confined electrical installations without needing to disconnect the circuit.
The CM4141 measures 60 A, 600 A and 2000 A AC across three ranges from 45 Hz to 1 kHz. True RMS measurement helps provide accurate AC readings when dealing with distorted waveforms from variable-speed drives, LED lighting and switching power supplies.
The clamp jaw has a 55 mm opening for larger conductors, while the jaw cross-section is only approximately 11 mm thick near the tip. This combination provides both conductor capacity and access between tightly packed cables.
Beyond AC current measurement, the CM4141 supports AC and DC voltage measurement up to 1000 V, as well as DC+AC voltage, resistance, frequency, temperature, continuity and diode testing. MAX/MIN/AVG/PEAK functions provide additional information for troubleshooting changing electrical conditions.
The meter is rated CAT IV 600 V / CAT III 1000 V and has an IP50 enclosure rating. It is designed for operation from −25 to 65 °C, making it suitable for a wide range of field service environments.
The CM4141 does not support Bluetooth or the Z3210 Wireless Adapter, so it can be used directly without an app or wireless setup.
Manufactured in Japan, the CM4141 combines high AC current capacity, True RMS measurement and a slim jaw profile for professional electrical maintenance and troubleshooting.
General Tech Services supplies genuine Hioki instruments across Saudi Arabia from its Dammam office. Share the part number, quantity and delivery location, and our team can confirm availability, pricing and application compatibility.
Key Benefits
- Measures 60 A / 600 A / 2000 A AC
- True RMS measurement for accurate readings on distorted AC loads
- 55 mm jaw opening for larger conductors
- Approximately 11 mm slim jaw cross-section near the tip
- CAT IV 600 V / CAT III 1000 V safety rating
- Measures AC and DC voltage up to 1000 V
- Resistance, frequency, temperature, continuity and diode testing
- MAX/MIN/AVG/PEAK functions for troubleshooting
- IP50 enclosure and −25 to 65 °C operating range
- Compact design for crowded distribution boards
- Made in Japan
Who This Product Is Best For
- Electricians and maintenance technicians working on distribution boards
- Industrial teams measuring high AC loads
- Technicians troubleshooting motors and electrical equipment
- HVAC and building-services engineers
- Contractors requiring high-current AC True RMS measurement
- Service professionals working in installations with tightly packed conductors
How to Use It
- Select the appropriate AC current function and measurement range.
- Open the clamp and position it around a single current-carrying conductor rather than the complete cable.
- Close the jaw fully and read the measured current.
- Use MAX/MIN/AVG/PEAK functions when additional measurement information is required.
- For voltage, resistance, frequency, temperature or other lead-based measurements, connect the test leads and select the appropriate function.
- Confirm the electrical environment and applicable CAT rating before taking measurements.
- Follow the applicable Hioki operating instructions for the selected measurement function.
Frequently Asked Questions
What current can the Hioki CM4141 measure?
The CM4141 measures 60 A, 600 A and 2000 A AC across three ranges from 45 Hz to 1 kHz.
Is the CM4141 a True RMS clamp meter?
Yes. The CM4141 uses True RMS measurement for AC current.
Can the CM4141 measure DC current?
No. The CM4141 measures AC current only.
What is the jaw size of the CM4141?
The meter has a 55 mm jaw opening, with a slim jaw cross-section of approximately 11 mm near the tip.
What voltage can the CM4141 measure?
The CM4141 measures voltage up to 1000 V and supports AC, DC and DC+AC voltage measurement.
What is the safety rating of the CM4141?
The CM4141 is rated CAT IV 600 V / CAT III 1000 V.
Does the CM4141 support Bluetooth?
No. The CM4141 does not support Bluetooth or the Z3210 Wireless Adapter.
Can the CM4141 measure resistance and continuity?
Yes. It provides resistance and continuity measurement, along with frequency, temperature and diode testing.
Is the CM4141 suitable for crowded electrical panels?
Yes. Its 55 mm jaw opening combined with an approximately 11 mm slim jaw cross-section is designed to provide access around conductors in confined spaces.
Should I choose the CM4141 or the CM4141-50?
Selection should be based on the required current and voltage measurement capabilities, jaw requirements and the specific application. Contact General Tech Services with your application details so the appropriate model can be confirmed.
Is delivery available across Saudi Arabia?
Yes. Free Saudi Arabia shipping is available. Call +966 569 289 544 for pricing and lead time.
