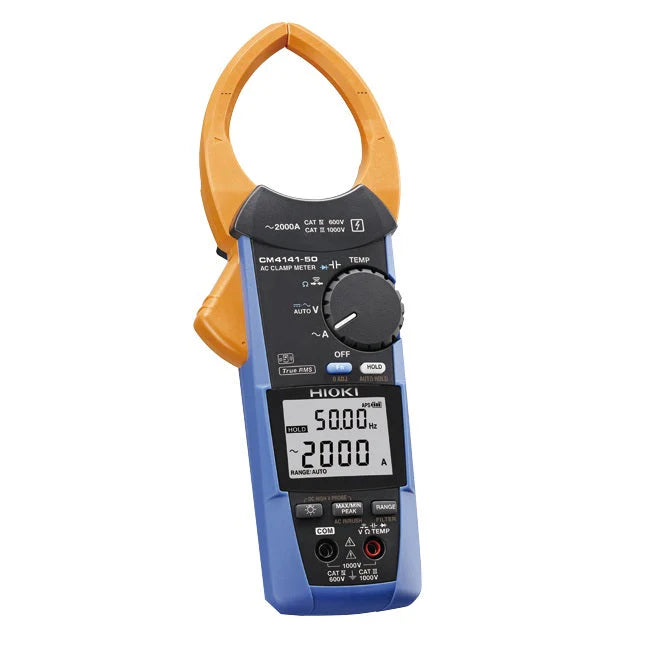

HIOKI CM4141-50 | AC Clamp Meter | 2000 A True RMS, 300 g
Genuine Hioki CM4141-50 clamp meter from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.
Part No. CM4141-50
Product Overview
The Hioki CM4141-50 is a 2000 A AC True RMS clamp meter designed for high-current electrical measurement, troubleshooting, and maintenance. Its 55 mm jaw accommodates larger conductors, while the slim 11 mm jaw cross-section helps provide access in confined electrical panels and equipment.
The meter measures 60 A, 600 A, and 2000 A AC across three ranges from 45 Hz to 1 kHz. It also measures voltage up to 1000 V and provides functions for AC current, AC and DC voltage, DC+AC voltage, resistance, frequency, temperature, continuity, diode testing, and MAX/MIN/AVG/PEAK measurements.
True RMS measurement provides accurate AC readings where waveforms may be distorted by equipment such as variable-frequency drives, LED lighting, and switching power supplies.
The CM4141-50 can also be used with the optional Z3210 Wireless Adapter. With Z3210, measurement data can be transferred wirelessly to the GENNECT Cross app on iOS or Android for logging and reporting.
The instrument is rated CAT IV 600 V / CAT III 1000 V and has an IP50 enclosure rating. It is designed for operation from −25 to 65 °C and is manufactured in Japan.
Key Benefits
- Measures 60 A / 600 A / 2000 A AC
- True RMS measurement for AC current
- 55 mm jaw with a slim 11 mm cross-section
- Measures voltage up to 1000 V
- CAT IV 600 V / CAT III 1000 V safety rating
- Optional wireless connectivity through the Z3210 adapter
- Supports MAX/MIN/AVG/PEAK measurements
- Made in Japan
Who This Product Is Best For
The Hioki CM4141-50 is suitable for electricians and maintenance technicians working on electrical panels, motors, machinery, and other high-current AC systems.
It is also suitable for industrial maintenance teams requiring measurements up to 2000 A AC, HVAC and building-services engineers, and contractors who need a True RMS clamp meter for field troubleshooting.
The 55 mm jaw provides capacity for larger conductors, while the slim jaw cross-section can be useful when working around crowded electrical installations.
How to Use It
- Select the appropriate AC current function and measurement range.
- Open the clamp and place it around a single conductor.
- Close the jaw completely and read the measured current.
- Use MAX/MIN/AVG/PEAK functions when monitoring changing electrical loads.
- For voltage, resistance, frequency, temperature, or other supported measurements, connect the appropriate test leads and select the required function.
- If wireless data logging is required, connect the optional Z3210 Wireless Adapter and use the GENNECT Cross app.
Always follow the instrument manual and applicable electrical safety procedures when making measurements on energized equipment.
Frequently Asked Questions
What current can the Hioki CM4141-50 measure?
It measures 60 A, 600 A, and 2000 A AC across three ranges, with a frequency range of 45 Hz to 1 kHz.
Is the Hioki CM4141-50 a True RMS clamp meter?
Yes. The CM4141-50 uses True RMS measurement for AC current.
Can the CM4141-50 measure DC current?
No. The CM4141-50 measures AC current. It does, however, measure both AC and DC voltage.
What is the safety rating?
The CM4141-50 is rated CAT IV 600 V / CAT III 1000 V.
What size conductor can the clamp accommodate?
The clamp has a 55 mm jaw, with a slim 11 mm jaw cross-section.
Does the CM4141-50 support Bluetooth?
Wireless connectivity is available when the optional Z3210 Wireless Adapter is installed. The adapter works with the GENNECT Cross app on iOS and Android.
What is the difference between the CM4141-50 and CM4141?
Both models are high-current AC clamp meters, but the exact application should be matched against requirements such as current measurement, AC/DC measurement needs, jaw dimensions, True RMS requirements, and wireless connectivity. Contact us with your application to confirm the appropriate model.
Is delivery available across Saudi Arabia?
Yes. Free Saudi Arabia shipping is available. Contact General Tech Services for current pricing and lead time.
