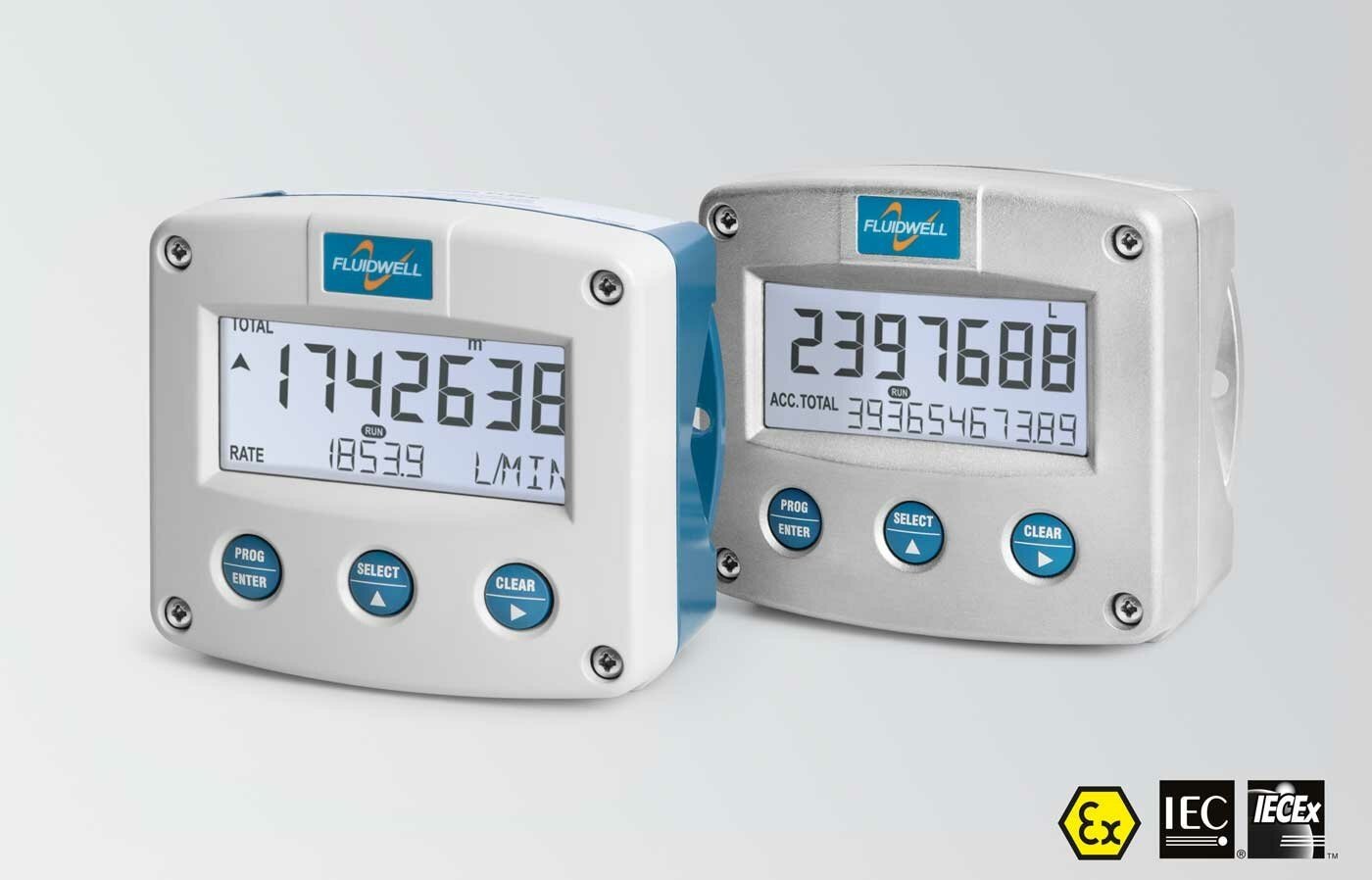

Fluidwell F110 | Intrinsically Safe Flow rate Indicator / Totalizer | with Modbus communication, analog and pulse outputs, ambient -40°C to +70°C
The F110 flow rate indicator / totalizer is the most popular model in our range of flow rate indicator / totalizers, complete with pulse and analog output signals. Even demanding applications are catered for with our base unit configuration. Displays total and flow rate simultaneously and additional accumulated total. Typical use: Liquid flow measurement where re-transmission of the flow rate and/or totalizer functions or serial communication is required.
Key features
- Analog and pulse outputs.
- Displays total and flow rate simultaneously and additional accumulated total.
- Large digit selection for flow rate or total.
- Flow rate: seven 17mm (0.67") or 8mm (0.31") digits.
- Total - resettable: seven 17mm (0.67") digits.
- Accumulated total - not resettable: eleven 8mm (0.31") digits.
- Separate engineering units for flow rate and total on the display.
- Specifications
- Features
- Downloads
| Part Number | F110 |
| Brand | Fluidwell |
| Product Type | Flow rate Indicator / Totalizer |
| Enclosure / Area | Safe area / Intrinsically safe |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Signal Inputs - Flowmeter Inputs | Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.; (0)4 – 20mA. |
| Supply - Power Supply | Long life Lithium battery.; 4 – 20mA Loop-powered.; 8 – 24V AC/DC.; 115 – 230V AC.; Basic: 8 - 30V DC. |
| Supply - Sensor Supply | 3.2, 8.2, 12, 24V DC. |
| Signal Inputs - Status Inputs | Remote control: external reset for clearing total or to disable manual clearing by the keypad. |
| Signal Outputs - Pulse Outputs | Function: Scaled pulse output according to accumulated total (e.g. a pulse every 3.25 gallons). Max. frequency: 500Hz. Adjustable pulse length from 0.001 sec. to 9.999 seconds.; Type: One passive NPN transistor, active PNP transistor or isolated electro-mechanical relay. |
| Signal Outputs - Analog Outputs | Function: Re-transmitting the flow rate - the output can be scaled to any range (e.g. 200 L/min to 1200 L/min).; Type: One passive isolated, floating or loop powered 4 – 20mA output or one active (0)4 – 20mA or 0 – 10V DC output. |
| Hazardous Area - Intrinsically Safe | ATEX: Gas: II 1 G Ex ia IIB/IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100 °C Da; IECEx: Gas: Ex ia IIC/IIB T4 Ga Dust: Ex ia IIIC T200 100 °C Da. |
| Communication | Function: All process data and settings can be read and modified through the communication link. Protocol: Modbus ASCII / RTU. Interface: RS232 / RS485 2-wire or 4-wire / TTL. |
- Pulse and analog outputs.
- simultaneously shows the total, the flow rate, and any additional accumulated total.
- Large digit selection available for total or flow rate.
- Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
- Total: seven resettable digits measuring 17 mm (0.67").
- Total accumulated: eleven 8mm (0.31") non-resetable digits.
- distinct engineering units on the display for the total and flow rate.
- To lock the "clear total" button or reset the total, use a remote control.
- LED backlighting.
- intrinsic safety as defined by IECEx and ATEX.
- Enclosures made of GRP, aluminum, or premium stainless steel.
- EEPROM memory is used for automatic setting and running total backups.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
