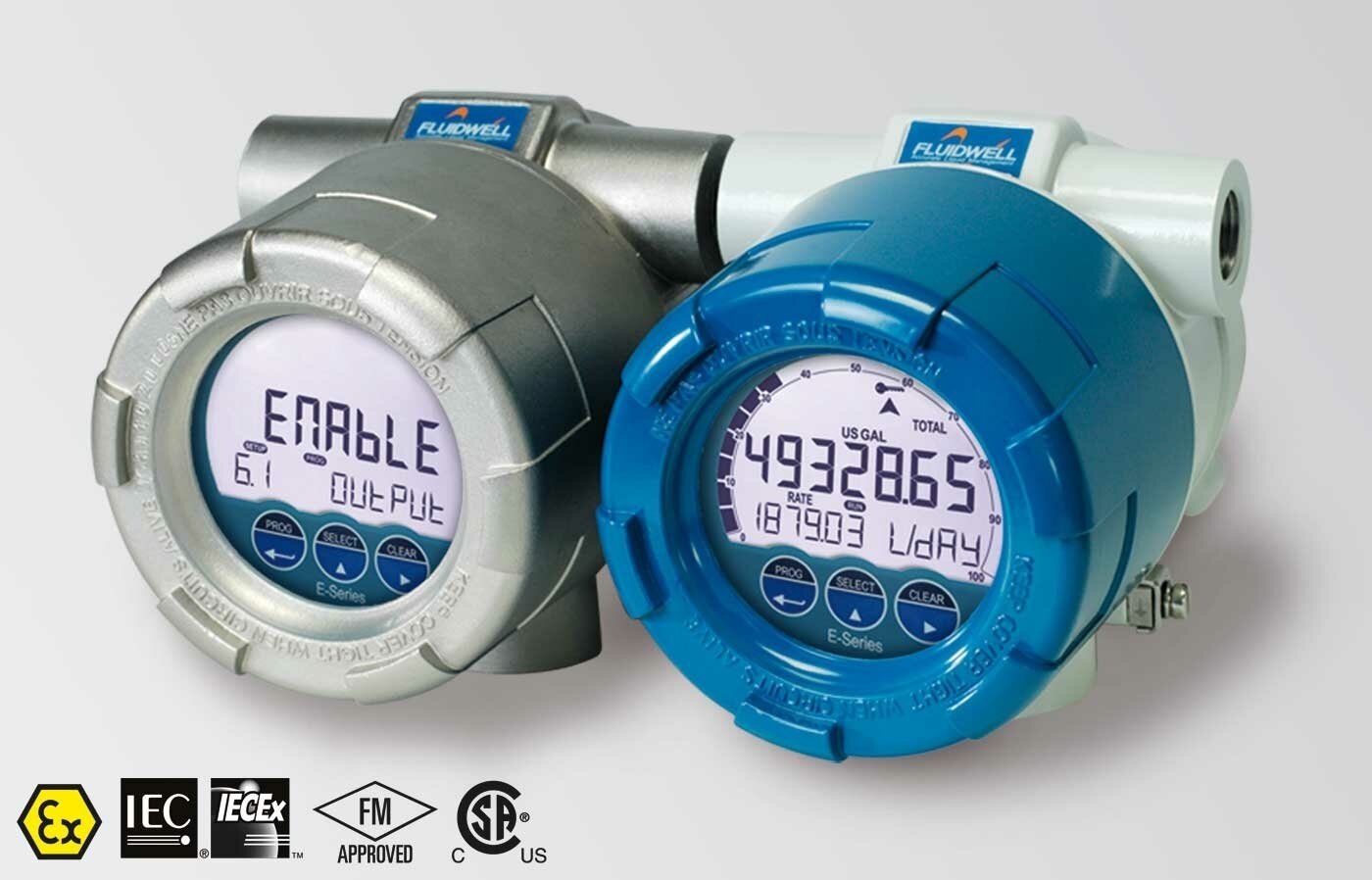

Fluidwell E115 | Explosion proof Bi-directional Flow rate Indicator / Totalizer | with analog, pulse and flow direction outputs, ambient -40°C to +70°C
The E115 bi-directional flow rate indicator / totalizer has been developed for applications where the direction of flow is an issue. Applications can be found by loading and unloading of ships where one bi-directional flowmeter is used. Another application is the correction of back-flow due to shocks in a pipeline caused by piston pumps or valve behavior. Typical use: For bi-directional flow measurement applications like loading / unloading (of ships) through the same flowmeter.
Key features
- Explosion proof according ATEX, IECEx and CSA C-US.
- Aluminum or high grade stainless steel Ex d enclosure.
- Easy installation with the spacious chamber and plug & play connectors.
- Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.
- Detects flow direction with quadrature signal inputs.
- Easy K-factor and engineering unit configuration for volumetric or mass. Learn more with this interactive tutorial.
- 7 digit flow rate / total and 11 digit accumulated total.
- Specifications
- Features
- Downloads
| Part Number | E115 |
| Brand | Fluidwell |
| Product Type | Bi-directional Flow rate Indicator / Totalizer |
| Enclosure / Area | Explosion proof |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Signal Inputs - Flowmeter Inputs | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. |
| Supply - Power Supply | Long life Lithium battery.; 4 – 20mA. Output loop-powered.; 9 – 27V DC. |
| Supply - Sensor Supply | 3, 8.2, 12, 24V DC. |
| Signal Inputs - Status Inputs | Remote control: external input for clearing total or to disable manual clearing by the keypad. |
| Signal Outputs - Pulse Outputs | Function:Configurable outputs: scaled pulse output according to the bi-directional accumulated total, unscaled pulse input retransmission or switch output indicating the direction of the flow. Max. frequency: 500Hz. Retransmission: Minimum pulse duration: 50µs, Adjustable pulse length from 1 msec. Up to 10 seconds.; Type: Two passive NPN transistors and two isolated electro-mechanical relays. |
| Signal Outputs - Analog Outputs | Function: Re-transmitting the forward, reverse or differential flow rate. - the output can be scaled to any range (e.g. 200 L/min to 1200 L/min).; Type: One galvanically isolated, loop powered 4 – 20mA output. |
| Communication | Function: Reading display information, clear total and reading / writing all configuration settings. Type: RS232, RS485 2-wire Modbus RTU or Local USB. Remote configuration via free downloadable remote configuration tool (see dropdown download above). HART communication is available with the E018 Flow rate Monitor / Totalizer. |
| Hazardous Area - Explosion Proof | ATEX: Gas: II 2 G Ex db IIC T6 Gb. Dust: II 2 D Ex tb IIIC T85 °C Db.; IECEX: Gas: Ex db IIC T6 Gb. Dust: Ex tb IIIC T85 °C Db.; CSA C-US: XP (Explosion-proof): Class I, Division 1, Groups A, B, C, D. DIP (Dust-Ignition-proof): Class II, Div. 1, Groups E, F, & G T85 °C; Class III. Gas: Class I, Zone 1, AEx db IIC T6 Gb. Dust: Zone 21, AEx tb IIIC T85 °C Db. |
- In accordance with ATEX, IECEx, FM, and CSA C-US, explosion proof.
- Ex terior enclosure made of premium stainless steel or aluminum.
- Plug and play connectors and a roomy chamber make installation simple.
- Installing a direct flowmeter mounting nozzle with a 1" NPT thread is simple and saves money.
- uses quadrature signal inputs to detect the direction of flow.
- A flow rate-indicating speedometer, measurement units, forward and reverse flow rates, forward and reverse totals, accumulated totals count up and count down, and flow direction are all displayed on the display, providing important information at a glance.
- Simple engineering unit setup with K-factor for mass or volumetric measurements. Use this interactive tutorial to learn more.
- 11-digit cumulative total and 7-digit flow rate/total.
- LED backlight that is bright.
