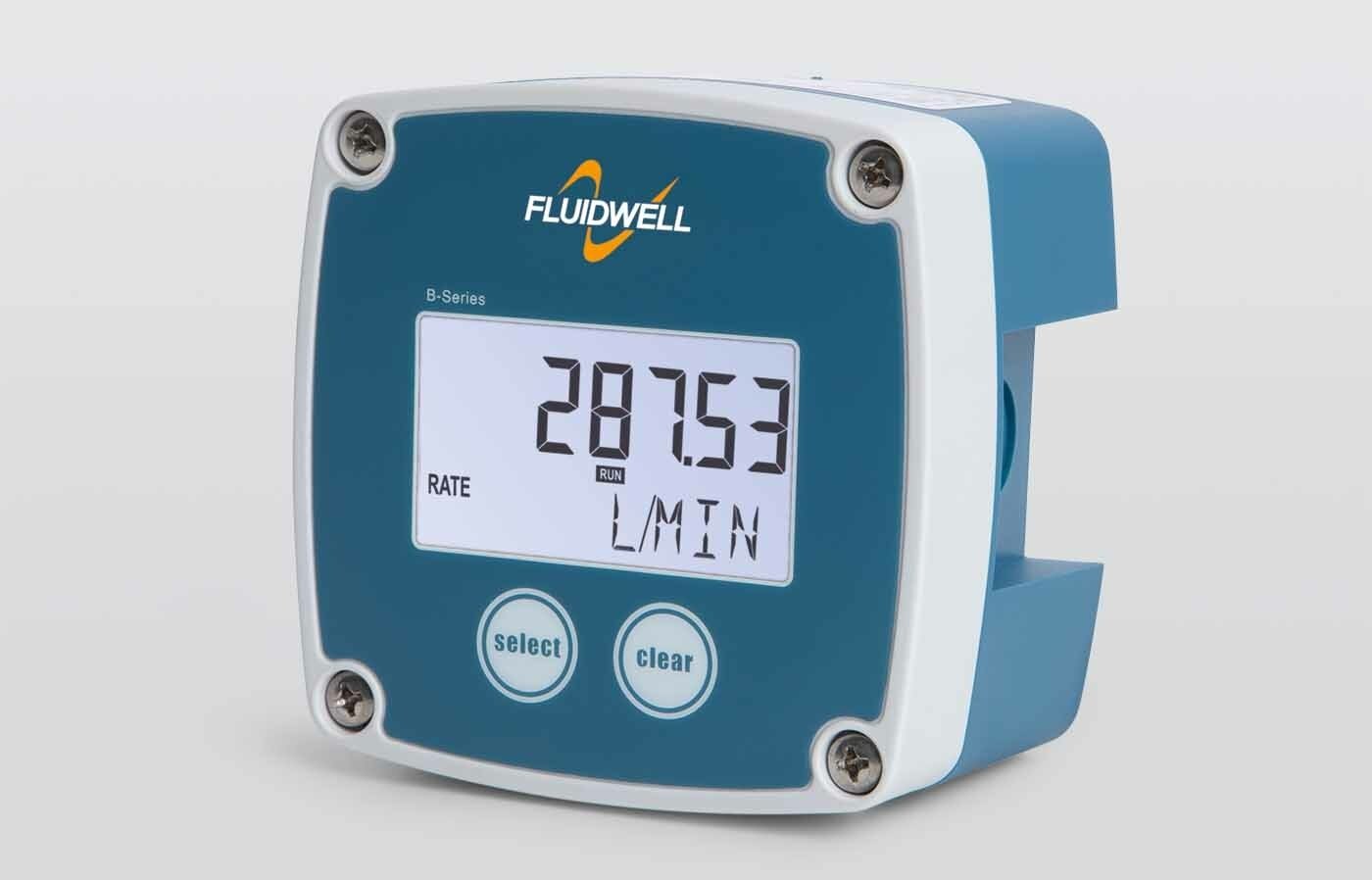

Fluidwell B-Basic | Flow rate Indicator / Totalizer | nothing more, nothing less
The B-Basic is a local flow rate indicator / totalizer to display the actual flow rate, total and accumulated total. The total can be reset to zero by pressing the CLEAR button twice. On-screen engineering units are easily configured from a comprehensive selection. Typical use: Basic flow measurement where a local flow rate indication and totalizer function is required without re-transmission functionality.
Key features
- Compact design.
- Displays instantaneous flow rate, total and accumulated total.
- Durable IP65 (Type 4X) field, wall or meter mount enclosure.
- One 20mm (0.79") and two 16mm(0.63") knock-out hole cable entries.
- “Know one, know them all” configuration structure.
- Easy reading and programming with clear alphanumerical display.
- Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits.
- Specifications
- Features
- Downloads
| Part Number | B-Basic |
| Brand | Fluidwell |
| Product Type | Flow rate Indicator / Totalizer |
| Signal Inputs - Flowmeter Inputs | Basic types of flowmeter signals: Namur, Reed-switch, NPN, PNP and Sine wave (coil). |
| Supply - Power Supply | A single 3,6V lithium AA battery.; 10 – 30V DC. |
| Communication | Modbus communication available on the B-Connected. |
- small-scale layout.
- shows the total, accumulated total, and flow rate in real time.
- Sturdy IP65 (Type 4X) enclosure for a field, wall, or meter.
- Cable entry with one 20 mm (0.79") and two 16 mm (0.63") knock-out holes.
- "Know one, know them all" hierarchy of configurations.
- Simple programming and reading with a readable alphanumeric display.
- Clearly visible 7mm (0.3") alphanumeric and 12mm (0.5") numeric digits.
- LED backlight that is bright.
- Run totals and settings are automatically backed up.
- A 10–30V DC power source and a lithium AA battery.
