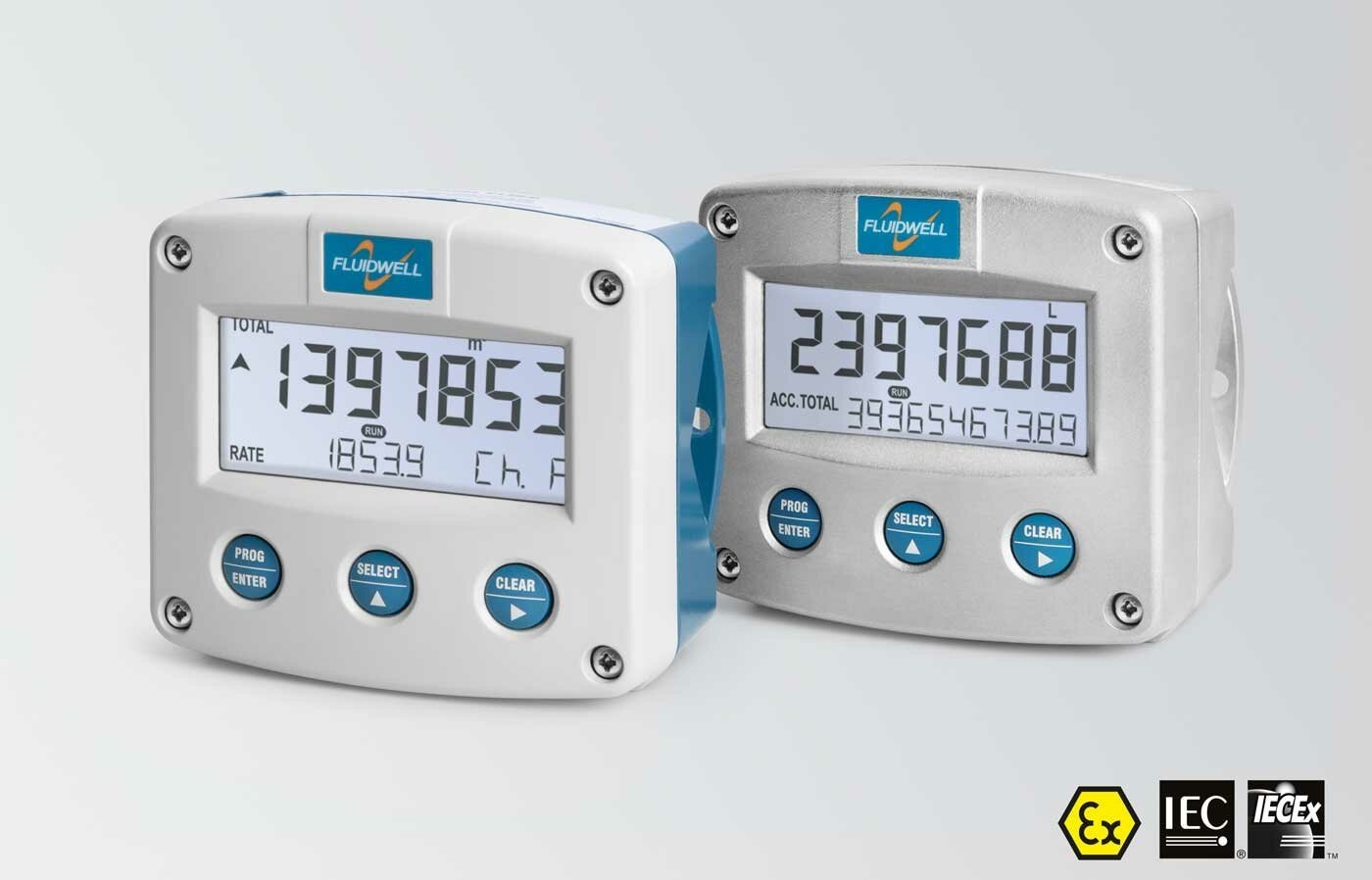

Fluidwell F111 | Intrinsically Safe Dual input Flow rate Indicator / Totalizer | with two pulse outputs, ambient -40°C to +70°C
The F111 incorporates two flow rate indicator / totalizers in one enclosure, including a pulse output for each flow. There is no relationship between the flows, even different pulse signal input types can be used. For each flow, on-screen engineering units are easily configured from a comprehensive selection. Typical use: For those applications where two indicators are required but one single and compact enclosure is desired.
Key features
- Two competely separated flow rate / totalizers.
- For each flow one scaled pulse output.
- Displays total, flow rate and product I.D. simultaneously.
- Large digit selection for flow rate or total.
- Flow rates: seven 17mm (0.67") or 8mm (0.31") digits.
- Totals - resettable: seven 17mm (0.67") digits.
- Accumulated totals - not resettable: eleven 8mm (0.31") digits.
- Specifications
- Features
- Downloads
| Part Number | F111 |
| Brand | Fluidwell |
| Product Type | Dual input Flow rate Indicator / Totalizer |
| Enclosure / Area | Safe area / Intrinsically safe |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Signal Inputs - Flowmeter Inputs | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. Different pulse signal types are allowed for input A and B. |
| Supply - Power Supply | Long life Lithium battery.; 4 – 20mA Loop-powered.; 8 – 24V AC/DC.; 115 – 230V AC.; Basic: 8 - 30V DC. |
| Supply - Sensor Supply | 3.2, 8.2, 12, 24V DC. |
| Signal Outputs - Pulse Outputs | Function: Scaled pulse output according to accumulated total (e.g. a pulse every 3.25 gallons). Max. frequency: 500Hz. Adjustable pulse length from 0.001 sec. to 9.999 seconds.; Type: Two passive NPN transistors, active PNP transistors or isolated electro-mechanical relays. |
| Hazardous Area - Intrinsically Safe | ATEX: Gas: II 1 G Ex ia IIB/IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100 °C Da; IECEx: Gas: Ex ia IIC/IIB T4 Ga Dust: Ex ia IIIC T200 100 °C Da. |
| Communication | Function: All process data and settings can be read and modified through the communication link. Protocol: Modbus ASCII / RTU. Interface: RS232 / RS485 2-wire or 4-wire / TTL. |
- Two flow rate/totalizers that are completely independent.
- There is one scaled pulse output per flow.
- concurrently shows the total, the flow rate, and the product ID.
- Large digit selection available for total or flow rate.
- Seven 17mm (0.67") or 8mm (0.31") numbers indicate the flow rate.
- Seven resettable 17mm (0.67") digits make up the totals.
- Eleven 8mm (0.31") numbers represent the accumulated totals, which are not resettable.
- distinct engineering units for the display's totals and flow rates.
- LED backlighting.
- intrinsic safety as defined by IECEx and ATEX.
- Enclosures made of GRP, aluminum, or premium stainless steel.
- EEPROM memory is used for automatic setting and running total backups.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
