Flexbar 17001 | Electrical Interlocking Mounting Bracket (E.I.M.B.) | Style 1
Part Number : 17001

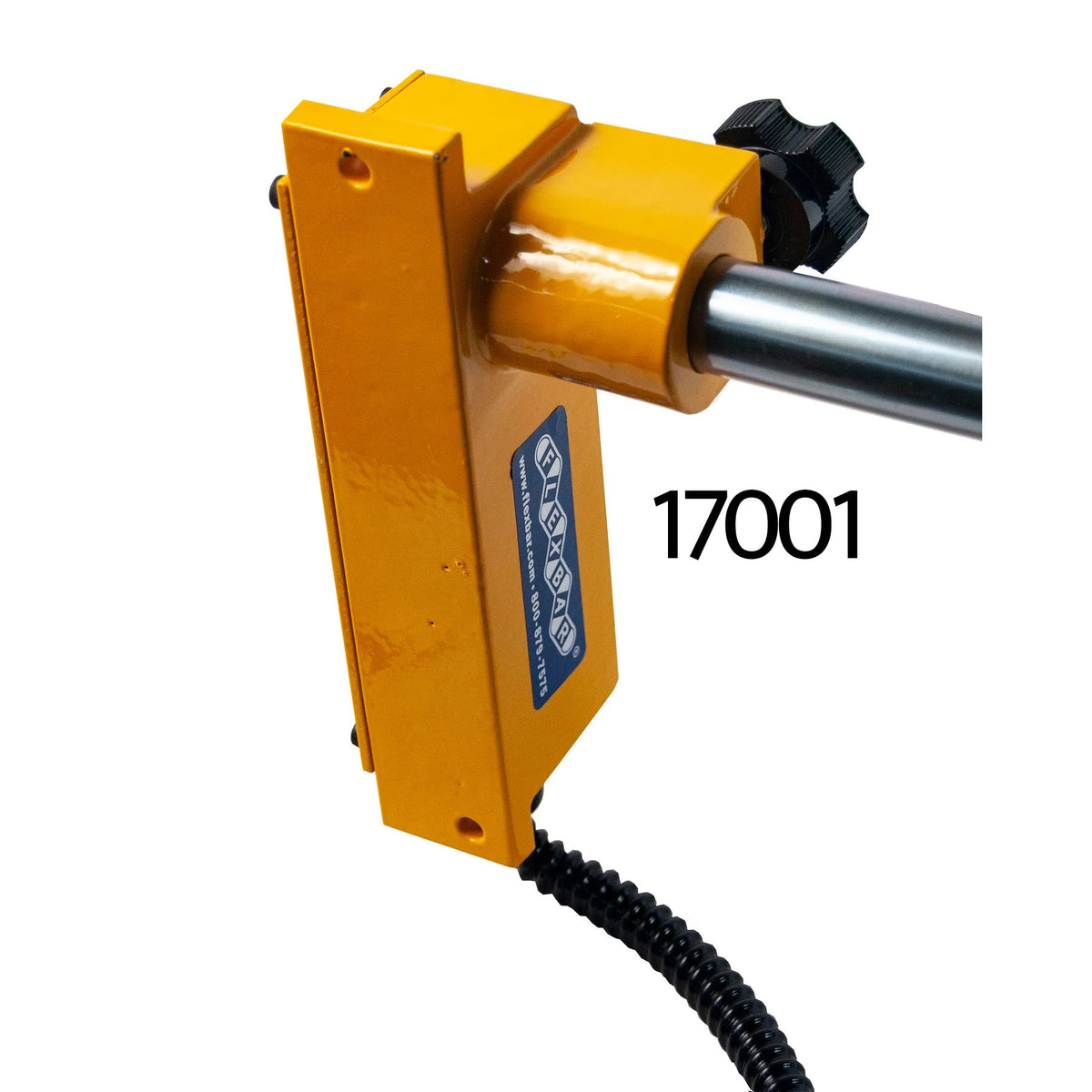

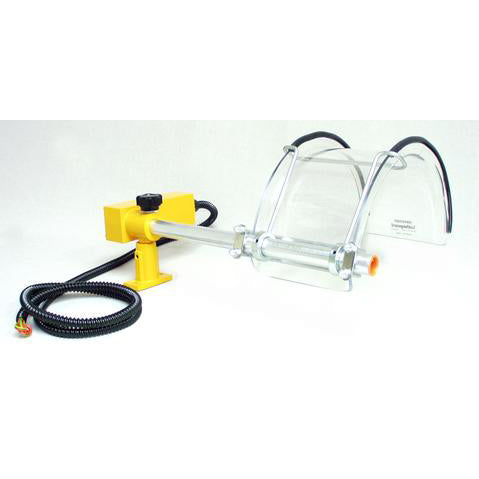

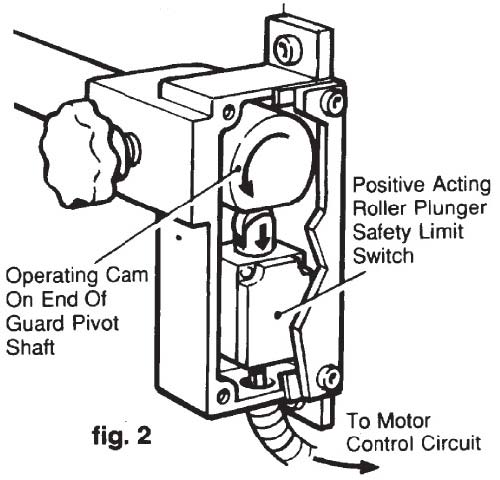

Flexbar 17001 is the Style 1 Electrical Interlocking Mounting Bracket, mounted at the back of the lathe and suitable for all shield sizes. It replaces the existing bracket on Flexbar Latheguards or Small Chuckguards so the machine cannot be started unless the guard is down. Once wired to the motor starter, a cam-operated limit switch opens when the shield is tilted up and the lathe stops.
Key features
- Style 1: mounts at the back of the lathe, all shield sizes
- Roller-type limit switch, metal roller and head in sealed plastic housing
- NEMA 4 rated switch
- Snap-acting SPDT double-break contacts
- Electrical life 1 million cycles; mechanical life 30 million cycles
- Bright yellow painted finish
For pricing, please contact our experts.
