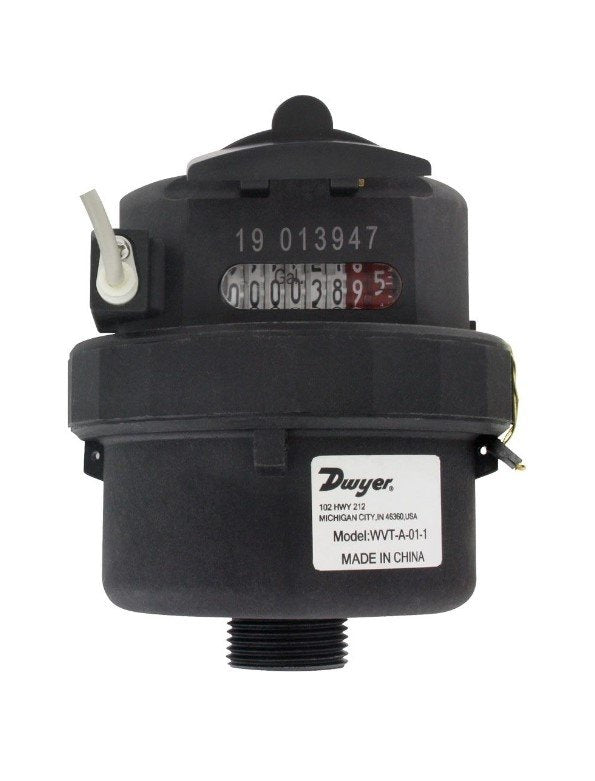

Dwyer WVT-A-01 | Rotary Piston Water Meter | 1/2" NPT, no pulse output
Dwyer WVT-A-01 is a plastic rotary piston water meter with 1/2" NPT connections, showing total water used, with no pulse output fitted. Its polymer and stainless steel construction suits vertical or horizontal installation, and adapter couplings are included to convert the BSPP threads to NPT.
- WVT-A-01 accuracy: ±2% at nominal flow, ±5% at transitional flow
- Rated to 150 psi (1034 kPa) and 122°F (50°C) at 1/2" NPT (WVT-A-01)
- Wetted materials on WVT-A-01: ABS, POM, stainless steel and Buna-N
- Weight 1.15 lb (0.52 kg) (WVT-A-01)
- Specifications
- Features
- Downloads
| Part Number | WVT-A-01 |
| Brand | Dwyer |
| Type | Rotary piston (vertical) water meter |
| Pulse Output | Not fitted |
| Accuracy | ±2% nominal flow; ±5% transitional flow |
| Wetted Materials | ABS, POM, stainless steel, Buna-N |
| Mounting | Horizontal or vertical |
| Weight | 1.15 lb (0.52 kg) |
| Max Pressure | 150 psi (1034 kPa) |
| Max Temperature | 122 °F (50 °C) |
| Couplings | Adapters from BSPP to NPT included |
| Connection | 1/2" NPT |
- Precise measurement of flow in both horizontal and vertical directions.
- Materials made of polymers resist rust and chemical deterioration.
- Pulse output for keeping track of flow.
- The meter is protected against backflow by a one-way valve.
