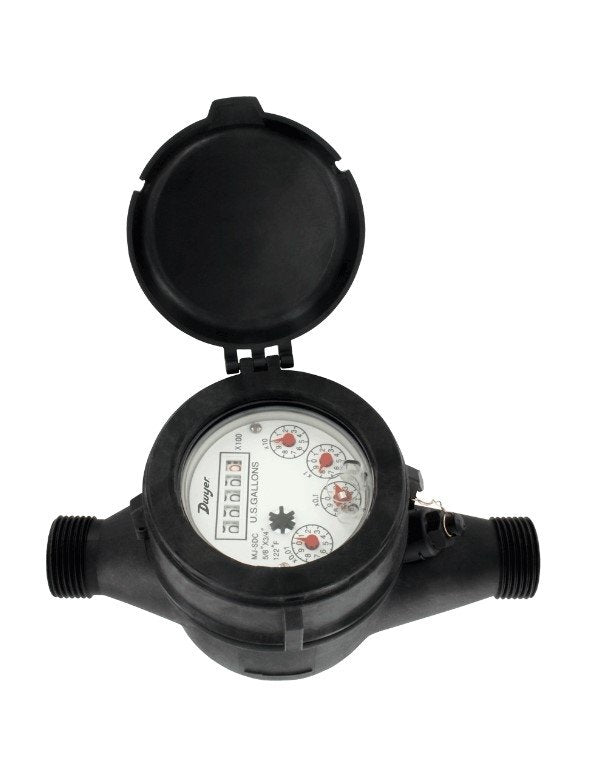

Dwyer WPT-B-C-08-10 | Multi-Jet Plastic Water Meter | 25 mm, 10 L/pulse
Part Number : WPT-B-C-08-10
Built for 25 mm lines, model WPT-B-C-08-10 from Dwyer is a plastic multi-jet meter whose 10 L/pulse output can be wired to a counter or controller. The WPT-B-C-08-10's register totals consumption mechanically; plastic body meters like this are chosen for potable water, certain corrosive settings or where an economical totaliser is needed.
- Accuracy on the WPT-B-C-08-10: ±1.5% at nominal flow, ±3% at transitional flow
- Handles up to 150 psi (10 bar) and 122°F (50°C) in the 25 mm size
- Nylon 66 body and couplings with an ABS measuring chamber on the WPT-B-C-08-10
- 10 L/pulse output via colour-coded 4.5 ft (1.5 m) leads, rated 0.01 A @ 24 VAC/DC
- Mount the WPT-B-C-08-10 horizontally with the register facing up
Free Saudi Arabia shipping available
For pricing, please contact our experts.
