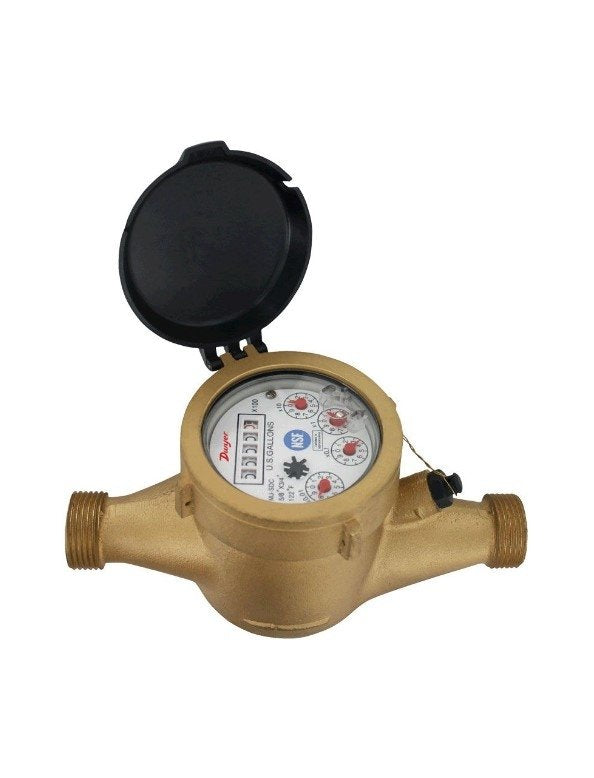

Dwyer WNT-A-C-08-10 | Lead-Free Brass Multi-Jet Water Meter | 2", 10 gal/pulse, NSF

Part Number : WNT-A-C-08-10

For 2" lines, Dwyer offers the WNT-A-C-08-10 lead-free brass multi-jet water meter, carrying NSF certification for potable water use. On the WNT-A-C-08-10, a mechanical register counts usage in gallons or cubic metres, and the 10 gal/pulse output reports flow to external equipment.

  • WNT-A-C-08-10 flow ratings: nominal flow 8 to 160, maximum 160, transitional 2
  • Accuracy of the WNT-A-C-08-10: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-08-10)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-08-10
  • Pulse wiring on the WNT-A-C-08-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-08-10 weighs 13.23 lb (6 kg)
