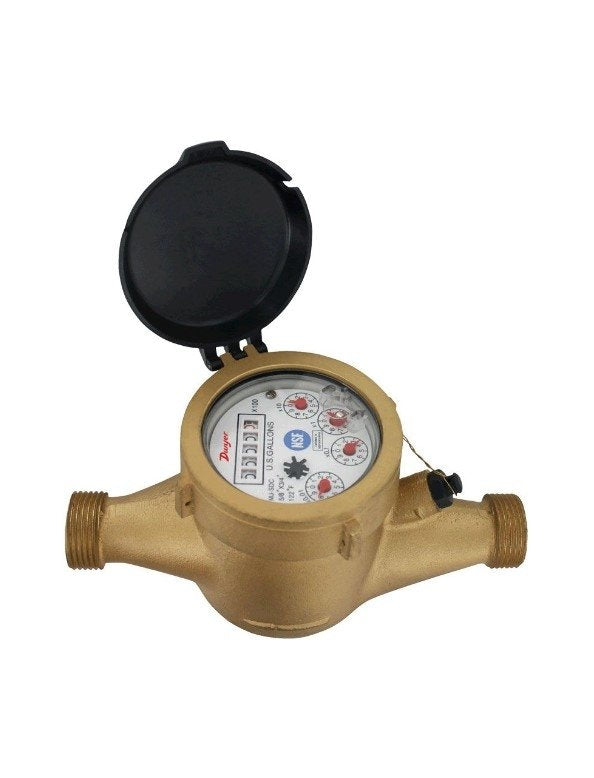

Dwyer WNT-A-C-08-1 | Lead-Free Brass Multi-Jet Water Meter | 2", 1 gal/pulse, NSF
Dwyer model WNT-A-C-08-1 pairs a 2" connection with a 1 gal/pulse output for remote totalising. This 2" meter is NSF certified, with a lead-free body for potable water and records volume in gallons or cubic metres.
- WNT-A-C-08-1 flow ratings: nominal flow 8 to 160, maximum 160, transitional 2
- Accuracy of the WNT-A-C-08-1: ±1.5% nominal flow, ±3% transitional flow
- Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-08-1)
- ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-08-1
- Pulse wiring on the WNT-A-C-08-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
- WNT-A-C-08-1 weighs 13.23 lb (6 kg)
- Specifications
- Features
- Downloads
| Part Number | WNT-A-C-08-1 |
| Brand | Dwyer |
| Type | Lead-Free Brass Multi-Jet Water Meter |
| Pipe Size | 2" |
| Pulse Output | 1 gal/pulse |
| Accuracy | ±1.5% nominal flow, ±3% transitional flow |
| Max Operating Pressure | 150 psi (10 bar) |
| Max Operating Temperature | 122 °F (50 °C) |
| Wetted Materials | ECO BRASS® body and couplings, ABS measuring chamber |
| Nominal Flow | 8 to 160 |
| Maximum Flow | 160 |
| Transitional Flow | 2 |
| Weight | 13.23 lb (6 kg) |
| Approvals | NSF |
- It is perfect for no lead requirements because of its NSF/ANSI 61 clearance.
- Even in low flow applications, multi-jet architecture offers side flow range accuracy and simplicity.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
