Dwyer Instruments WNT-A-C-05-10 | Multi-Jet water meter | 3/4" x 1" pipe size | NSF Certified | Brass body with 10 gal pulse output - generaltechuae

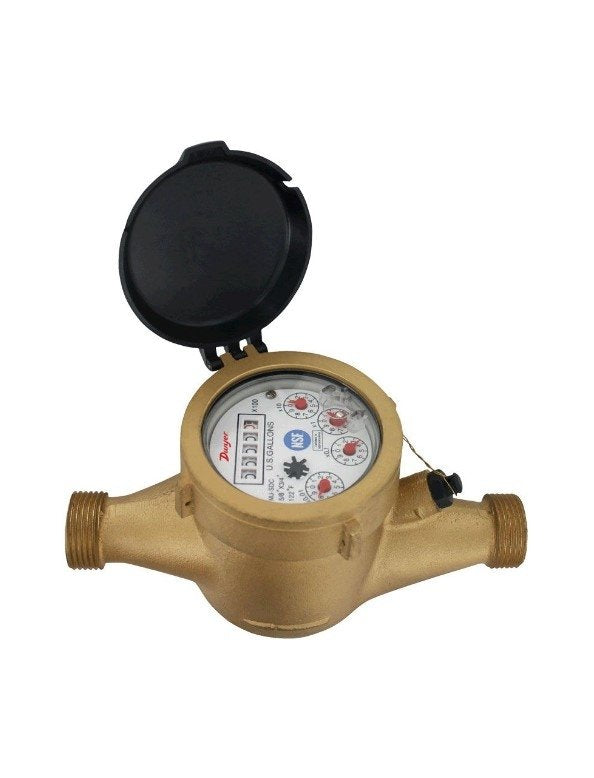

Dwyer WNT-A-C-05-10 | Lead-Free Brass Multi-Jet Water Meter | 3/4" x 1", 10 gal/pulse, NSF

Part Number : WNT-A-C-05-10

The Dwyer WNT-A-C-05-10 is a 3/4" x 1" lead-free brass multi-jet water meter with a 10 gal/pulse output, carrying NSF certification for potable water use. Its register totalises water use in gallons or cubic metres, and the WNT-A-C-05-10 sends pulses at a frequency proportional to flow.

  • WNT-A-C-05-10 flow ratings: nominal flow 2 to 30, maximum 30, transitional 0.5
  • Accuracy of the WNT-A-C-05-10: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-05-10)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-05-10
  • Pulse wiring on the WNT-A-C-05-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-05-10 weighs 6.02 lb (2.73 kg)
