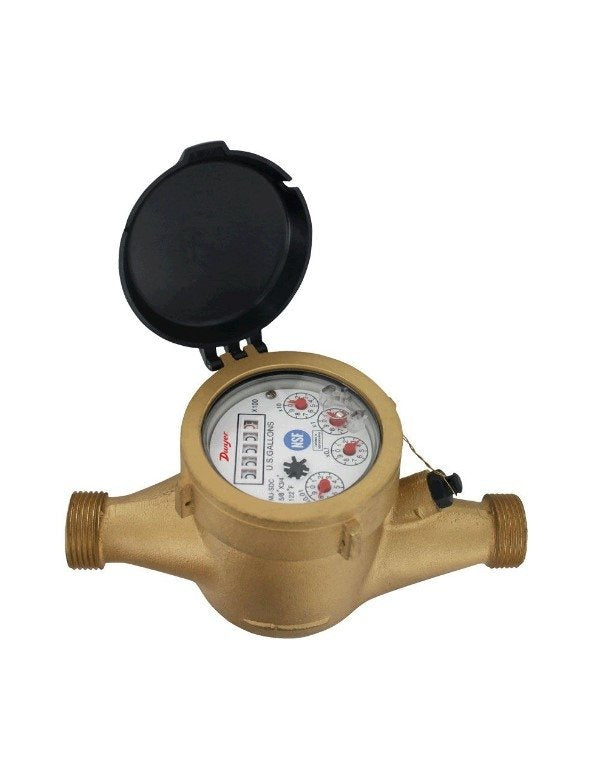

Dwyer Instruments WNT-A-C-01-100 | Multi-Jet water meter | 5/8" x 1/2" pipe size | NSF Certified | Brass body with 100 gal pulse output - generaltechuae

Dwyer WNT-A-C-01-100 | Lead-Free Brass Multi-Jet Water Meter | 5/8" x 1/2", 100 gal/pulse, NSF

Part Number : WNT-A-C-01-100

Sized for 5/8" x 1/2" pipework, the WNT-A-C-01-100 from Dwyer is a lead-free brass multi-jet water meter carrying NSF certification for potable water use. The WNT-A-C-01-100 register totalises consumption in gallons or cubic metres, while the 100 gal/pulse output feeds counters or controllers.

  • WNT-A-C-01-100 flow ratings: nominal flow 1 to 20, maximum 20, transitional 0.25
  • Accuracy of the WNT-A-C-01-100: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-01-100)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-01-100
  • Pulse wiring on the WNT-A-C-01-100: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-01-100 weighs 3.58 lb (1.63 kg)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
