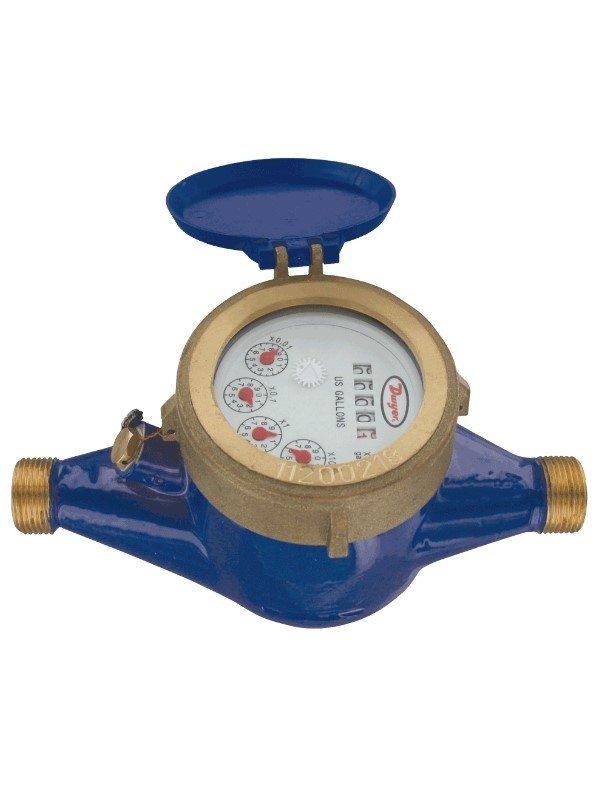

Dwyer WMT2-B-C-10-100 | Brass Multi-Jet Water Meter | 3/4" BSPT (20mm), 100 L/pulse

Part Number : WMT2-B-C-10-100

Dwyer model WMT2-B-C-10-100 pairs a 3/4" BSPT (20mm) connection with a 100 L/pulse output for remote totalising. This 3/4" BSPT (20mm) meter is equipped with a reed switch output that tracks flow rate and records volume in gallons or m³.

  • Accuracy of the WMT2-B-C-10-100: ±2% nominal flow, ±5% transitional flow
  • Rated to 232 psi (16 bar) and 104°F (40°C) maximum (WMT2-B-C-10-100)
  • Brass and polyethylene body, brass couplings on the WMT2-B-C-10-100
  • Pulse wiring on the WMT2-B-C-10-100: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMT2-B-C-10-100 horizontally with the register facing up
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
