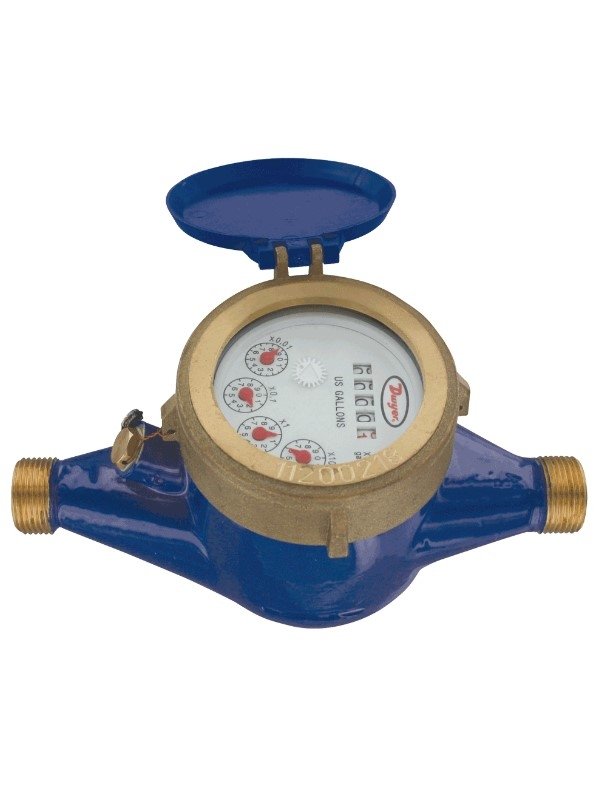

Dwyer WMT2-B-C-08-1 | Brass Multi-Jet Water Meter | 1/2" BSPT (15mm), 1 L/pulse
Part Number : WMT2-B-C-08-1
Dwyer model WMT2-B-C-08-1 pairs a 1/2" BSPT (15mm) connection with a 1 L/pulse output for remote totalising. This 1/2" BSPT (15mm) meter is equipped with a reed switch output that tracks flow rate and records volume in gallons or m³.
- WMT2-B-C-08-1 flow ratings: nominal flow 0.12 to 1.5 m³/h, maximum 3 m³/h, transitional 0.03 m³/h
- Accuracy of the WMT2-B-C-08-1: ±2% nominal flow, ±5% transitional flow
- Rated to 232 psi (16 bar) and 104°F (40°C) maximum (WMT2-B-C-08-1)
- Brass and polyethylene body, brass couplings on the WMT2-B-C-08-1
- Pulse wiring on the WMT2-B-C-08-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
- Install the WMT2-B-C-08-1 horizontally with the register facing up
Free Saudi Arabia shipping available
For pricing, please contact our experts.
