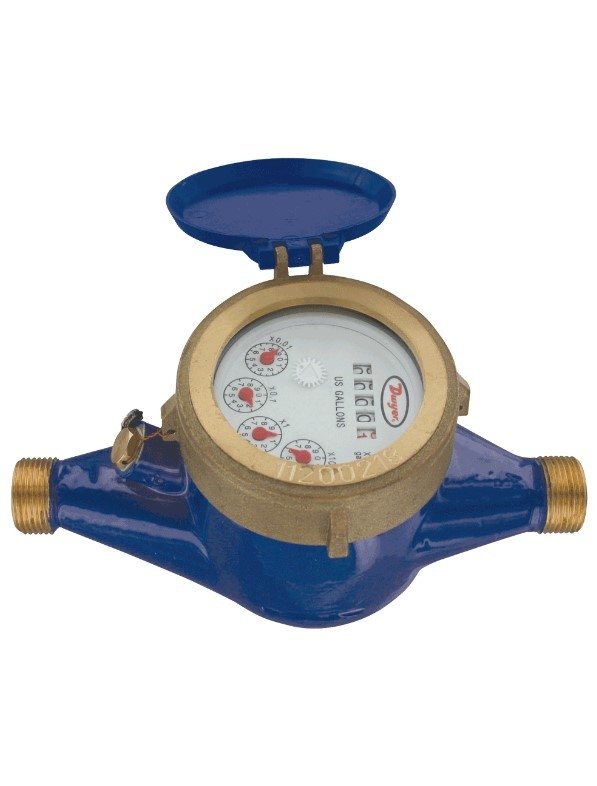

Dwyer WMT2-A-C-06-10 | Brass Multi-Jet Water Meter | 1-1/2", 10 gal/pulse
Part Number : WMT2-A-C-06-10
Dwyer model WMT2-A-C-06-10 pairs a 1-1/2" connection with a 10 gal/pulse output for remote totalising. This 1-1/2" meter is equipped with a reed switch output that tracks flow rate and records volume in gallons or m³.
- WMT2-A-C-06-10 flow ratings: nominal flow 5 to 100 GPM, maximum 100 GPM, transitional 1.5 GPM
- Accuracy of the WMT2-A-C-06-10: ±2% nominal flow, ±5% transitional flow
- Rated to 232 psi (16 bar) and 104°F (40°C) maximum (WMT2-A-C-06-10)
- Brass and polyethylene body, brass couplings on the WMT2-A-C-06-10
- Pulse wiring on the WMT2-A-C-06-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
- Install the WMT2-A-C-06-10 horizontally with the register facing up
