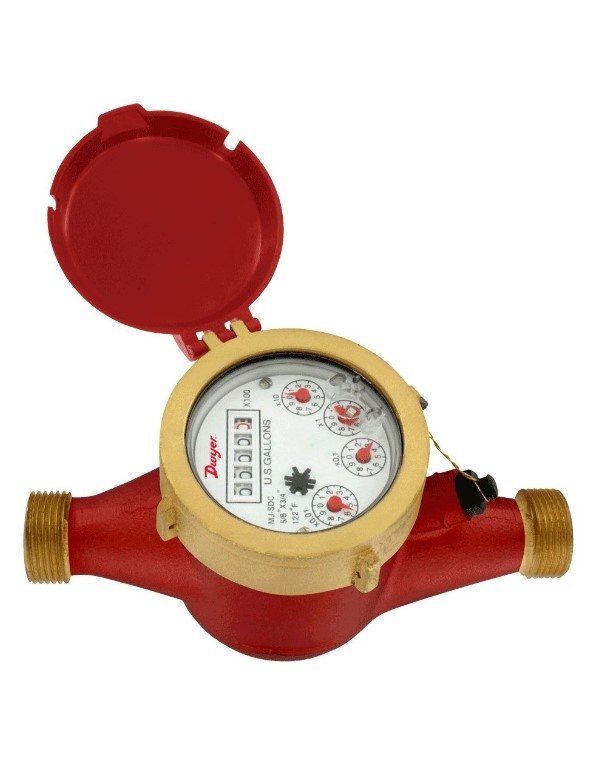

Dwyer WMH-A-C-08-10 | Multi-Jet Hot Water Meter | 2", 10 gal/pulse

Part Number : WMH-A-C-08-10

For 2" lines, Dwyer offers the WMH-A-C-08-10 multi-jet hot water meter, built for hot water service up to 190°F (88°C). On the WMH-A-C-08-10, a mechanical register counts usage in gallons, with m³ as an option, and the 10 gal/pulse output reports flow to external equipment.

  • WMH-A-C-08-10 flow ratings: nominal flow 8 to 160, maximum 160, transitional 2
  • Accuracy of the WMH-A-C-08-10: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-08-10)
  • Brass body, couplings and measuring chamber on the WMH-A-C-08-10
  • Pulse wiring on the WMH-A-C-08-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-A-C-08-10 horizontally with the register facing up
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
