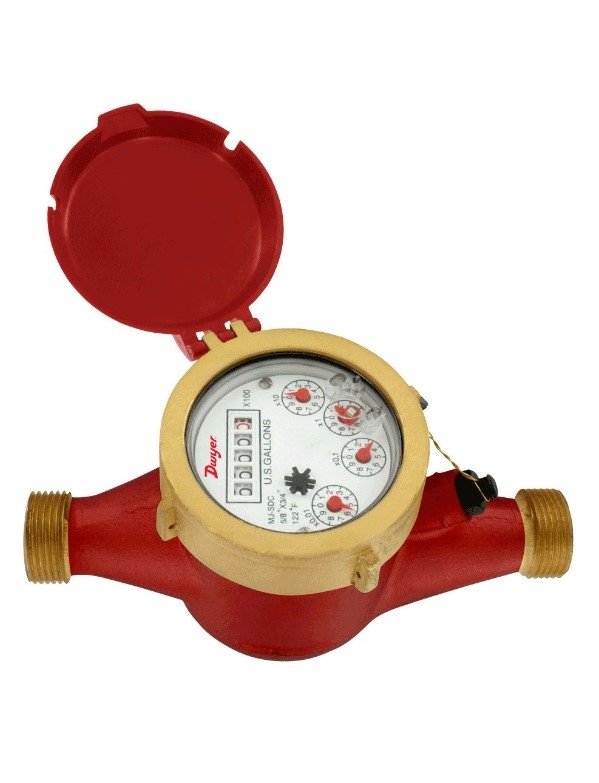

Dwyer WMH-A-C-06-1 | Multi-Jet Hot Water Meter | 1", 1 gal/pulse

Part Number : WMH-A-C-06-1

The Dwyer WMH-A-C-06-1 is a 1" multi-jet hot water meter with a 1 gal/pulse output, built for hot water service up to 190°F (88°C). Its register totalises water use in gallons, with m³ as an option, and the WMH-A-C-06-1 sends pulses at a frequency proportional to flow.

  • WMH-A-C-06-1 flow ratings: nominal flow 3 to 50, maximum 50, transitional 0.75
  • Accuracy of the WMH-A-C-06-1: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-06-1)
  • Brass body, couplings and measuring chamber on the WMH-A-C-06-1
  • Pulse wiring on the WMH-A-C-06-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-A-C-06-1 horizontally with the register facing up
