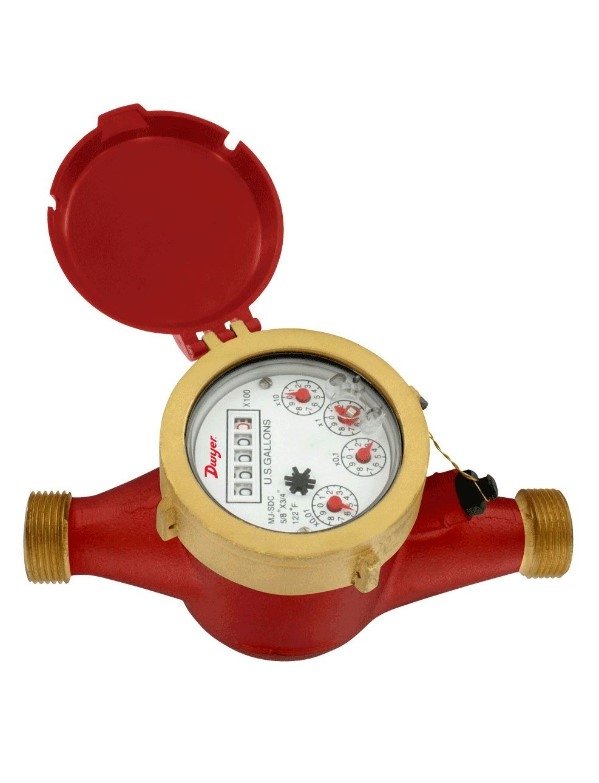

Dwyer WMH-A-C-03 | Multi-Jet Hot Water Meter | 3/4" short-length, 0.1 gal/pulse
For 3/4" short-length lines, Dwyer offers the WMH-A-C-03 multi-jet hot water meter, built for hot water service up to 190°F (88°C). On the WMH-A-C-03, a mechanical register counts usage in gallons, with m³ as an option, and the 0.1 gal/pulse output reports flow to external equipment.
- WMH-A-C-03 flow ratings: nominal flow 2 to 30, maximum 30, transitional 0.5
- Accuracy of the WMH-A-C-03: ±1.5% nominal flow, ±3% transitional flow
- Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-03)
- Brass body, couplings and measuring chamber on the WMH-A-C-03
- Pulse wiring on the WMH-A-C-03: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
- Install the WMH-A-C-03 horizontally with the register facing up
- Specifications
- Features
- Downloads
| Part Number | WMH-A-C-03 |
| Brand | Dwyer |
| Type | Multi-Jet Hot Water Meter |
| Pipe Size | 3/4" short-length |
| Pulse Output | 0.1 gal/pulse |
| Accuracy | ±1.5% nominal flow, ±3% transitional flow |
| Max Operating Pressure | 150 psi (10 bar) |
| Max Operating Temperature | 190 °F (88 °C) |
| Wetted Materials | Brass body, couplings and measuring chamber |
| Nominal Flow | 2 to 30 |
| Maximum Flow | 30 |
| Transitional Flow | 0.5 |
| Electrical | 0.01 A @ 24 VAC/DC, 4.5 ft (1.5 m) leads |
- Perfect for high temperature applications, the high temperature threshold of 190°F (88°C) makes it perfect.
- Even in low flow applications, multi-jet design offers simplicity and accuracy throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
