Dwyer Instruments WMH-A-C-03-10 | Multi-Jet hot water meter | 3/4" short length pipe size | 10 gal pulse output - generaltechuae

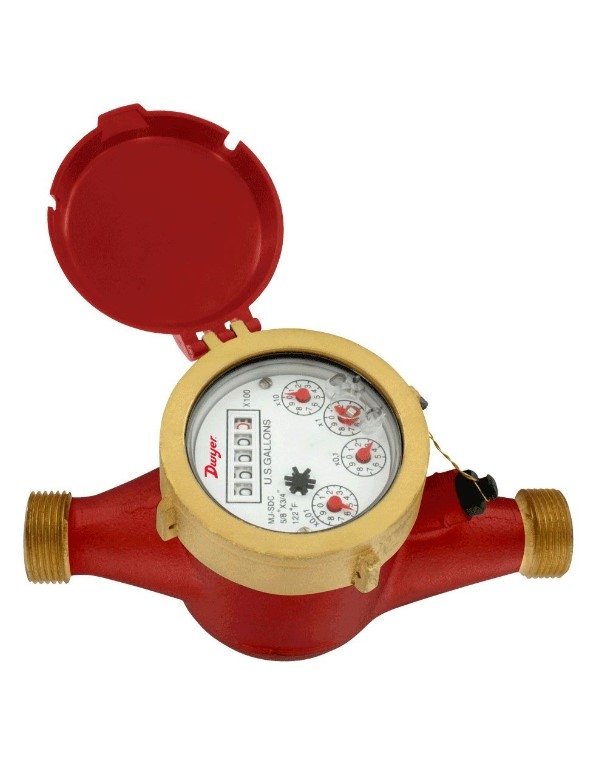

Dwyer WMH-A-C-03-10 | Multi-Jet Hot Water Meter | 3/4" short-length, 10 gal/pulse

Part Number : WMH-A-C-03-10

Sized for 3/4" short-length pipework, the WMH-A-C-03-10 from Dwyer is a multi-jet hot water meter built for hot water service up to 190°F (88°C). The WMH-A-C-03-10 register totalises consumption in gallons, with m³ as an option, while the 10 gal/pulse output feeds counters or controllers.

  • WMH-A-C-03-10 flow ratings: nominal flow 2 to 30, maximum 30, transitional 0.5
  • Accuracy of the WMH-A-C-03-10: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-03-10)
  • Brass body, couplings and measuring chamber on the WMH-A-C-03-10
  • Pulse wiring on the WMH-A-C-03-10: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-A-C-03-10 horizontally with the register facing up
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
