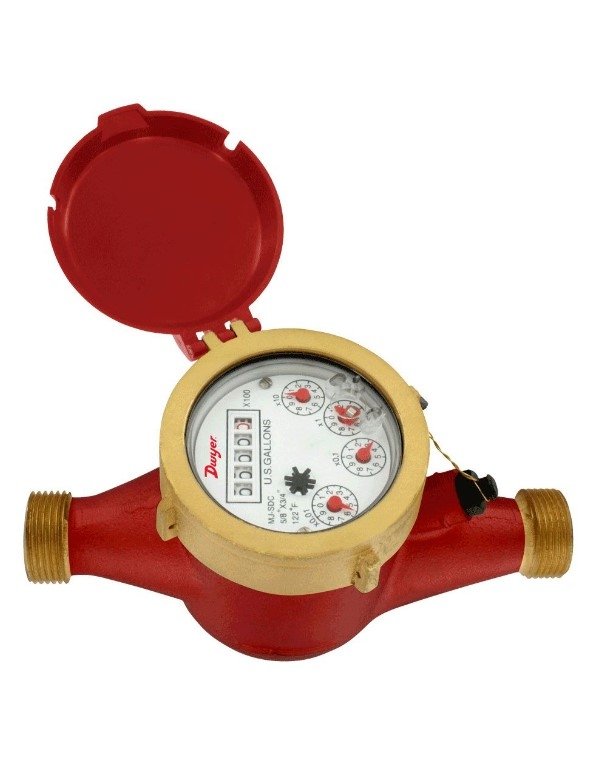

Dwyer WMH-A-C-02-100 | Multi-Jet Hot Water Meter | 5/8" x 3/4", 100 gal/pulse output
Dwyer WMH-A-C-02-100: a 5/8" x 3/4" hot water multi-jet meter, 100 gal per pulse, rated to 190°F (88°C). A mechanical register on the WMH-A-C-02-100 records total gallons used, with NPT or BSPT couplings available in the WMH series.
- Accuracy of the WMH-A-C-02-100: ±1.5% nominal flow, ±3% transitional flow
- Flow-proportional pulse output on the WMH-A-C-02-100, rated 0.01 A at 24 VAC/DC
- WMH-A-C-02-100 wiring: colour-coded leads, 1.5 m (4.5 ft)
- Brass construction throughout the WMH-A-C-02-100 wetted path
- WMH-A-C-02-100 handles up to 150 psi (10 bar) and mounts horizontally, register up
- Specifications
- Features
- Downloads
| Part Number | WMH-A-C-02-100 |
| Brand | Dwyer |
| Type | Multi-jet hot water meter |
| Pipe Size | 5/8" x 3/4" |
| Pulse Output | 100 gal per pulse, proportional to flow rate |
| Accuracy | Nominal flow ±1.5%; transitional flow ±3% |
| Max Operating Pressure | 150 psi (10 bar) |
| Max Operating Temperature | 190 °F (88 °C) |
| Wetted Materials | Brass body, couplings and measuring chamber |
| Mounting | Horizontal, register facing up |
| Electrical Rating | 0.01 A @ 24 VAC/DC |
| Electrical Connection | Colour-coded lead wires, 4.5 ft (1.5 m) |
- Perfect for high temperature applications, the high temperature threshold of 190°F (88°C) makes it perfect.
- Even in low flow applications, multi-jet design offers simplicity and accuracy throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
