Dwyer VA22440 | Variable Area Glass Flowmeter | SS float, 93.9 SCFH air, 21.7 GPH water

Part Number : VA22440

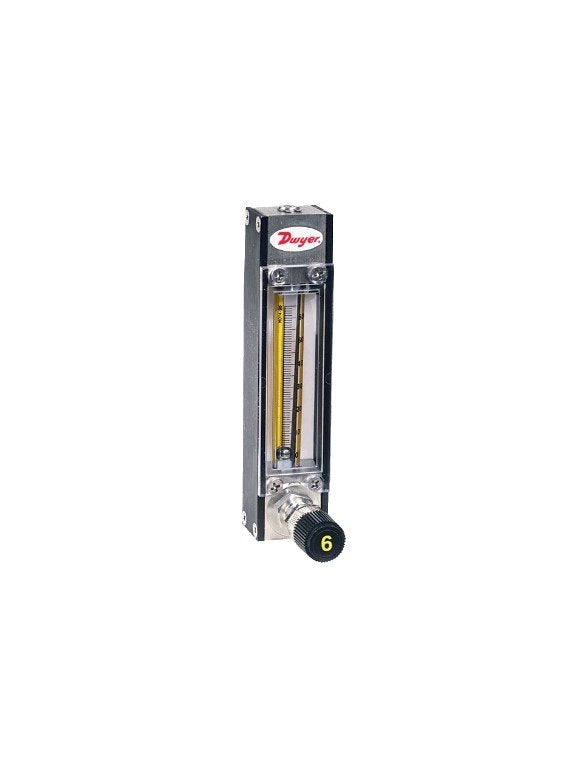

Dwyer VA22440: a glass variable area flowmeter with a stainless steel float, rated for a maximum of 93.9 SCFH (44336 ml/min) air or 21.7 GPH (1370 ml/min) of water. Use the VA22440 for metering carrier gases, indicating process flow and level, or measuring liquids and gases in laboratories and pilot plants.

  • ±2% FS accuracy at 21.1°C and 1 atm absolute, ±0.25% FS repeatability for the VA22440
  • Correlation charts with air and water calibration data accompany the VA22440 universal mm scale
  • VA22440 valve: 6-turn needle as standard, 16-turn high precision valve optional
  • Vertical mounting with two 1/8" female NPT ports on the VA22440; leak rate 1 x 10⁻⁷ sccs helium
  • Panel-mount ready; an optional acrylic tripod base lets the VA22440 stand on a bench
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
