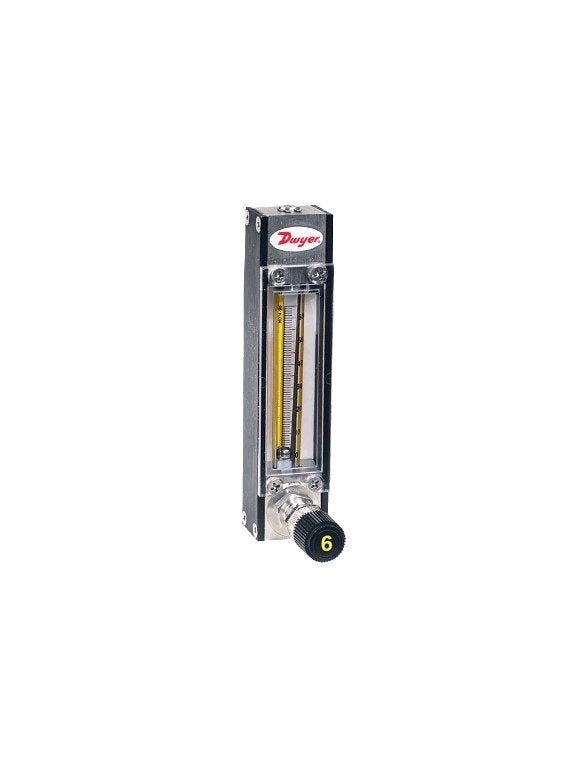

Dwyer VA22436 | Variable Area Glass Flowmeter | SS float, 16.08 SCFH air, 3.43 GPH water

Part Number : VA22436

With a stainless steel float and a range reaching a maximum of 16.08 SCFH (7590 ml/min) on air or 3.43 GPH (217 ml/min) of water, the Dwyer VA22436 is a glass-tube variable area flowmeter. Typical duties for the VA22436 are carrier-gas metering, process flow and level indication, and lab or pilot-plant measurement of liquids and gases.

  • Accuracy of the VA22436: ±2% FS (70°F, 14.7 psia); repeatability ±0.25% FS; 10:1 turn-down
  • VA22436 comes with a universal mm scale plus correlation charts for water and air
  • VA22436 flow control: 6-turn needle valve; high precision valve sold separately
  • VA22436 connections: two 1/8" female NPT; mount vertically
  • Delivered ready for panel mounting; convert the VA22436 to a bench unit with the optional acrylic tripod base
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
