Dwyer VA22429 | Variable Area Glass Flowmeter | Glass float, 0.792 SCFH air, 0.087 GPH water

Part Number : VA22429

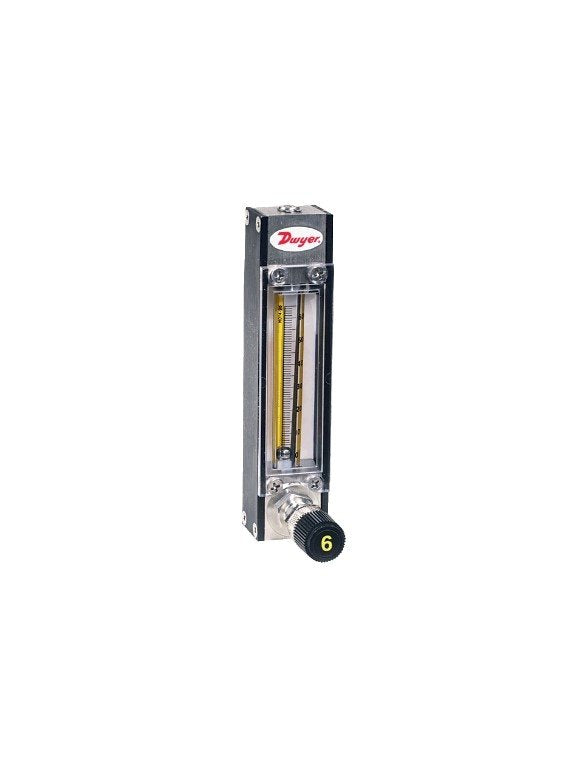

Dwyer VA22429: a glass variable area flowmeter with a glass float, rated for a maximum of 0.792 SCFH (374 ml/min) air or 0.087 GPH (5.5 ml/min) of water. Use the VA22429 for metering carrier gases, indicating process flow and level, or measuring liquids and gases in laboratories and pilot plants.

  • ±2% FS accuracy at 21.1°C and 1 atm absolute, ±0.25% FS repeatability for the VA22429
  • Correlation charts with air and water calibration data accompany the VA22429 universal mm scale
  • VA22429 valve: 6-turn needle as standard, 16-turn high precision valve optional
  • Vertical mounting with two 1/8" female NPT ports on the VA22429; leak rate 1 x 10⁻⁷ sccs helium
  • Panel-mount ready; an optional acrylic tripod base lets the VA22429 stand on a bench
