Dwyer Instruments VA20435 | Variable area glass flowmeter | Glass float | Max. flow rate 8.07 SCFH (3807 ml/min) air | 1.336 GPH (84 ml/min) water - generaltechuae

Dwyer VA20435 | Variable Area Glass Flowmeter | Glass float, 8.07 SCFH air, 1.336 GPH water

Part Number : VA20435

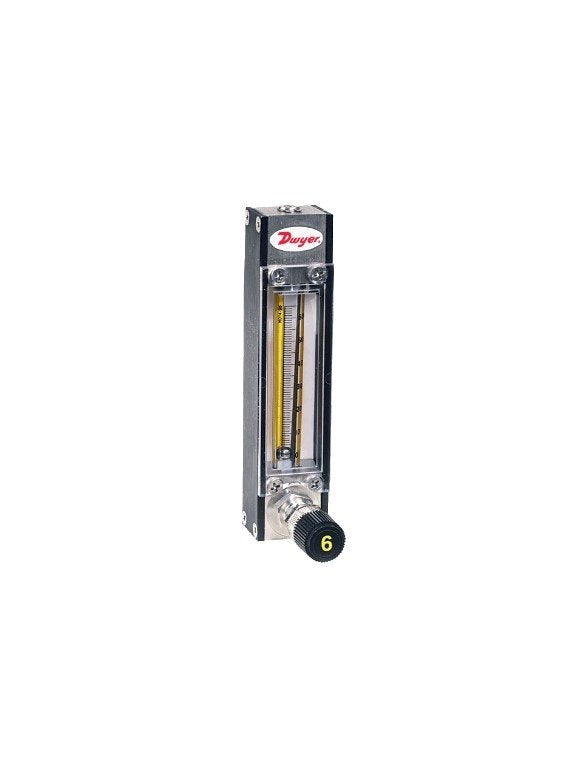

Dwyer VA20435: a glass variable area flowmeter with a glass float, rated for a maximum of 8.07 SCFH (3807 ml/min) air or 1.336 GPH (84 ml/min) of water. Use the VA20435 for metering carrier gases, indicating process flow and level, or measuring liquids and gases in laboratories and pilot plants.

  • ±2% FS accuracy at 21.1°C and 1 atm absolute, ±0.25% FS repeatability for the VA20435
  • Correlation charts with air and water calibration data accompany the VA20435 universal mm scale
  • VA20435 valve: 6-turn needle as standard, 16-turn high precision valve optional
  • Vertical mounting with two 1/8" female NPT ports on the VA20435; leak rate 1 x 10⁻⁷ sccs helium
  • Panel-mount ready; an optional acrylic tripod base lets the VA20435 stand on a bench
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
