Dwyer Instruments VA20434 | Variable area glass flowmeter | SS float | Max. flow rate 9.67 SCFH (4562 ml/min) air | 2.067 GPH (130 ml/min) water - generaltechuae

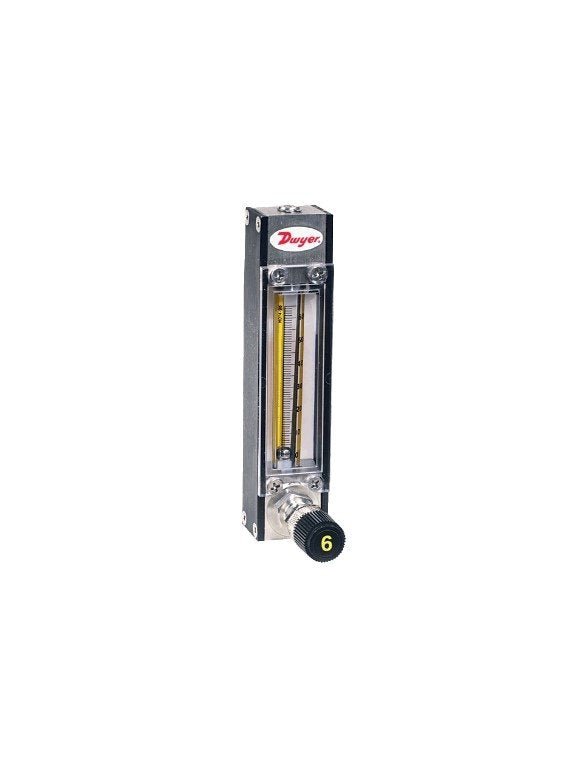

Dwyer VA20434 | Variable Area Glass Flowmeter | SS float, 9.67 SCFH air, 2.067 GPH water

Part Number : VA20434

With a stainless steel float and a range reaching a maximum of 9.67 SCFH (4562 ml/min) on air or 2.067 GPH (130 ml/min) of water, the Dwyer VA20434 is a glass-tube variable area flowmeter. Typical duties for the VA20434 are carrier-gas metering, process flow and level indication, and lab or pilot-plant measurement of liquids and gases.

  • Accuracy of the VA20434: ±2% FS (70°F, 14.7 psia); repeatability ±0.25% FS; 10:1 turn-down
  • VA20434 comes with a universal mm scale plus correlation charts for water and air
  • VA20434 flow control: 6-turn needle valve; high precision valve sold separately
  • VA20434 connections: two 1/8" female NPT; mount vertically
  • Delivered ready for panel mounting; convert the VA20434 to a bench unit with the optional acrylic tripod base
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
