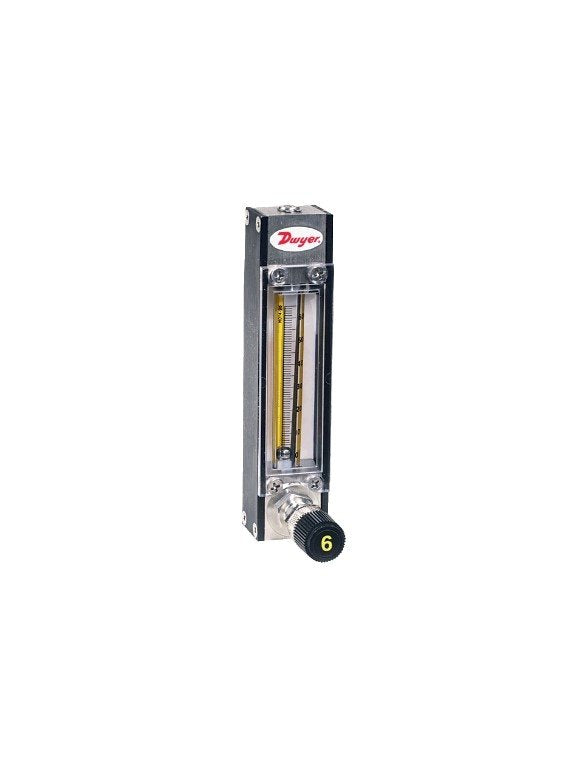

Dwyer VA1547 | Variable Area Glass Flowmeter | Glass float, 0.428 SCFH air, 0.047 GPH water

Part Number : VA1547

The Dwyer VA1547 is a variable area glass flowmeter with a glass float, graduated for 0.428 SCFH (202 ml/min) of air or 0.047 GPH (2.95 ml/min) of water. The VA1547 is listed for process flow and level indication, carrier-gas metering, and liquid or gas measurement in pilot plants and laboratories.

  • VA1547 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia, repeatability ±0.25% FS
  • Universal mm scale with air and water correlation charts and calibration data supplied with the VA1547
  • Standard 6-turn needle valve on the VA1547; 16-turn high precision metering valve sold separately
  • Two 1/8" female NPT connections, vertical mounting, 10:1 turn-down (VA1547)
  • VA1547 ships assembled for panel mounting; an optional acrylic tripod base allows bench use
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
