Dwyer VA1545 | Variable Area Glass Flowmeter | Glass float, 0.220 SCFH air, 0.028 GPH water

Part Number : VA1545

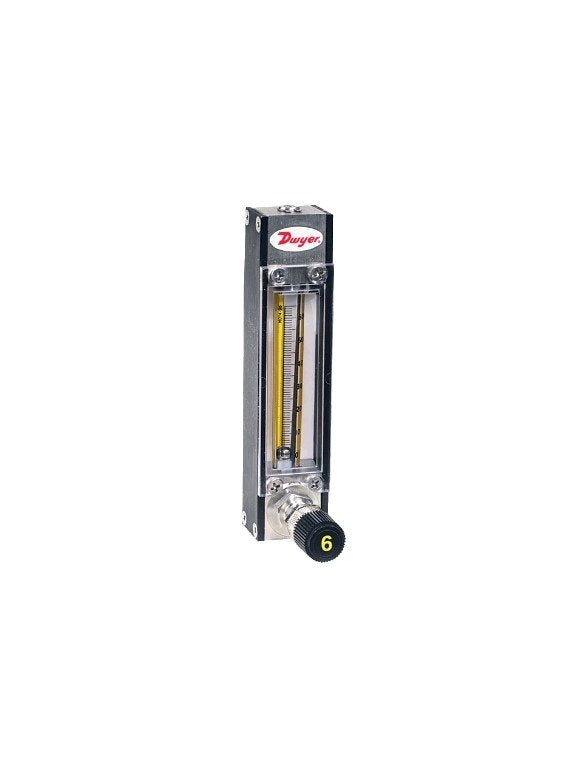

Dwyer VA1545: a glass variable area flowmeter with a glass float, rated for 0.220 SCFH (104 ml/min) air or 0.028 GPH (1.8 ml/min) of water. Use the VA1545 for metering carrier gases, indicating process flow and level, or measuring liquids and gases in laboratories and pilot plants.

  • ±2% FS accuracy at 21.1°C and 1 atm absolute, ±0.25% FS repeatability for the VA1545
  • Correlation charts with air and water calibration data accompany the VA1545 universal mm scale
  • VA1545 valve: 6-turn needle as standard, 16-turn high precision valve optional
  • Vertical mounting with two 1/8" female NPT ports on the VA1545; leak rate 1 x 10⁻⁷ sccs helium
  • Panel-mount ready; an optional acrylic tripod base lets the VA1545 stand on a bench
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
