Dwyer VA1507 | Variable Area Glass Flowmeter | Glass float, 0.428 SCFH air, 0.047 GPH water

Part Number : VA1507

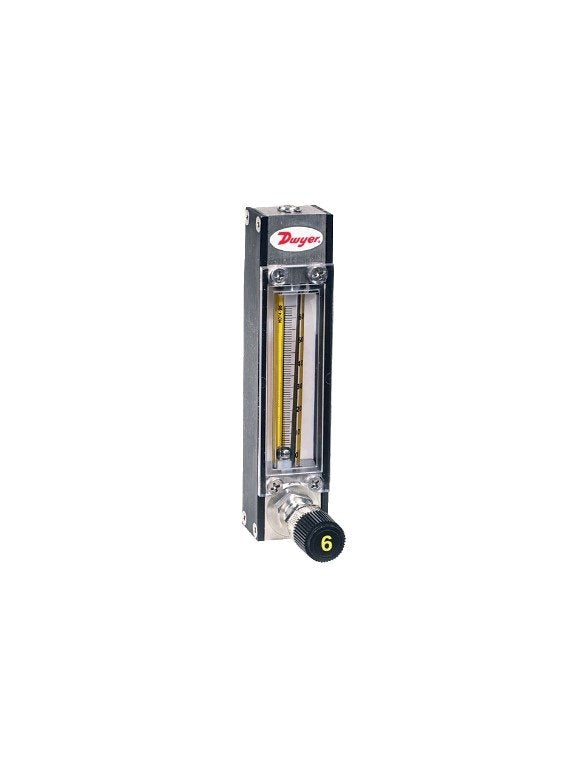

Dwyer VA1507: a glass variable area flowmeter with a glass float, rated for 0.428 SCFH (202 ml/min) air or 0.047 GPH (2.95 ml/min) of water. Use the VA1507 for metering carrier gases, indicating process flow and level, or measuring liquids and gases in laboratories and pilot plants.

  • ±2% FS accuracy at 21.1°C and 1 atm absolute, ±0.25% FS repeatability for the VA1507
  • Correlation charts with air and water calibration data accompany the VA1507 universal mm scale
  • VA1507 valve: 6-turn needle as standard, 16-turn high precision valve optional
  • Vertical mounting with two 1/8" female NPT ports on the VA1507; leak rate 1 x 10⁻⁷ sccs helium
  • Panel-mount ready; an optional acrylic tripod base lets the VA1507 stand on a bench
