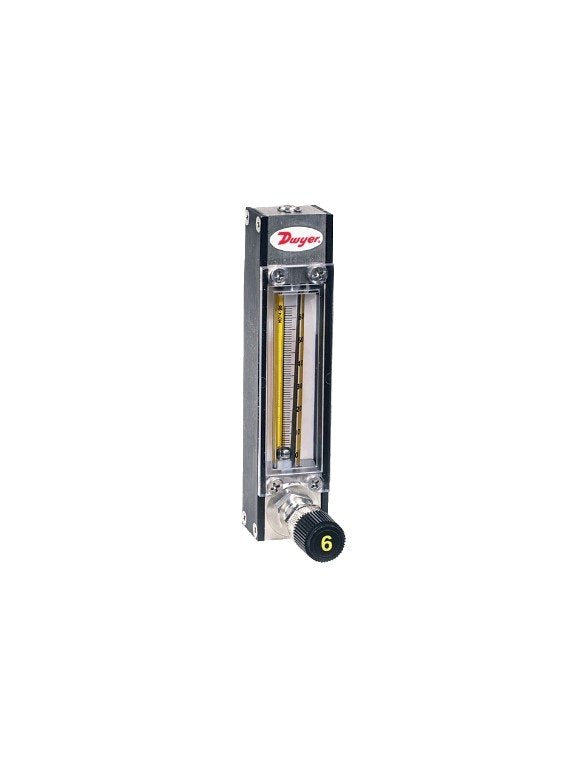

Dwyer VA15021 | Variable Area Glass Flowmeter | Glass float, 49 SCFH air, 8.27 GPH water
The Dwyer VA15021 is a variable area glass flowmeter with a glass float, graduated for 49 SCFH (23169 ml/min) of air or 8.27 GPH (522 ml/min) of water. The VA15021 is listed for process flow and level indication, carrier-gas metering, and liquid or gas measurement in pilot plants and laboratories.
- VA15021 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia, repeatability ±0.25% FS
- Universal mm scale with air and water correlation charts and calibration data supplied with the VA15021
- Standard 6-turn needle valve on the VA15021; 16-turn high precision metering valve sold separately
- Two 1/8" female NPT connections, vertical mounting, 10:1 turn-down (VA15021)
- VA15021 ships assembled for panel mounting; an optional acrylic tripod base allows bench use
- Specifications
- Features
- Downloads
| Part Number | VA15021 |
| Brand | Dwyer |
| Type | Variable area glass flowmeter |
| Accuracy | ±2% FS @ 70 °F (21.1 °C), 14.7 psia |
| Repeatability | ±0.25% FS |
| Mounting | Vertical |
| Flowtube | Borosilicate glass |
| Float | Glass |
| Valve | 6-turn needle (standard); 16-turn high precision optional |
| Connection | Two 1/8" female NPT |
| Scale | Universal 65 mm or 150 mm with correlation charts |
| Turn-down Ratio | 10:1 |
| Flow Rate (Air) | 49 SCFH (23169 ml/min) |
| Flow Rate (Water) | 8.27 GPH (522 ml/min) |
- Time is saved with a permanently fused ceramic scale with a vertical locator line that lessens parallax and eye strain.
- Long operational life and a magnifying lens to improve reading resolution are features of the robust polycarbonate front cover, which also protects the tube from breaking.
- For flow rate control, a standard 6-turn needle valve replaces the requirement for an additional valve, saving money.
- With the optional acrylic tripod base that enables self-standing bench mounting, no extra installation is needed.
- For extremely low flow rates, great sensitivity control and resolution are possible with high precision metering valves including non-rising stems.
