Dwyer Instruments VA1347 | Variable area glass flowmeter | Glass float | Max. flow rate 0.43 SCFH (202 ml/min) air | 0.041 GPH (2.6 ml/min) water - generaltechuae

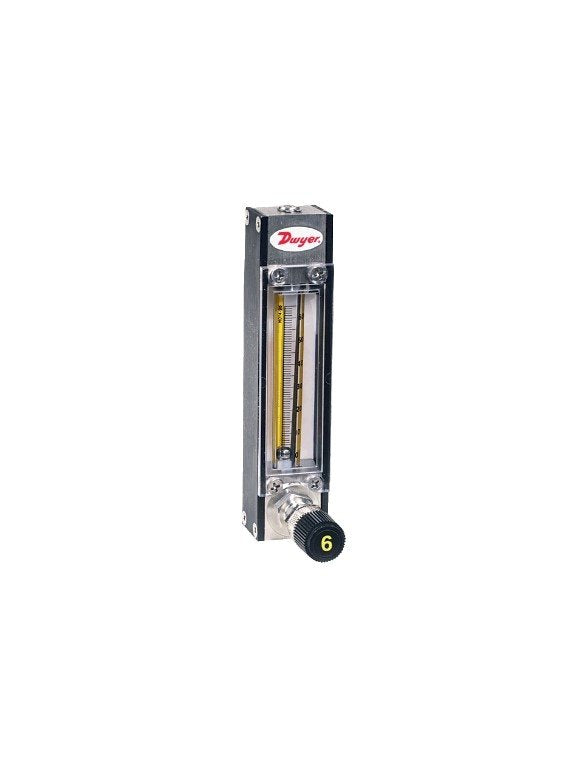

Dwyer VA1347 | Variable Area Glass Flowmeter | Glass float, 0.43 SCFH air, 0.041 GPH water

Part Number : VA1347

The Dwyer VA1347 is a variable area glass flowmeter with a glass float, graduated for a maximum of 0.43 SCFH (202 ml/min) of air or 0.041 GPH (2.6 ml/min) of water. The VA1347 is listed for process flow and level indication, carrier-gas metering, and liquid or gas measurement in pilot plants and laboratories.

  • VA1347 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia, repeatability ±0.25% FS
  • Universal mm scale with air and water correlation charts and calibration data supplied with the VA1347
  • Standard 6-turn needle valve on the VA1347; 16-turn high precision metering valve sold separately
  • Two 1/8" female NPT connections, vertical mounting, 10:1 turn-down (VA1347)
  • VA1347 ships assembled for panel mounting; an optional acrylic tripod base allows bench use
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
