Dwyer Instruments VA13417 | Variable area glass flowmeter | Glass float | Max. flow rate 13.4 SCFH (6318 ml/min) air | 2.33 GPH (147 ml/min) water - generaltechuae

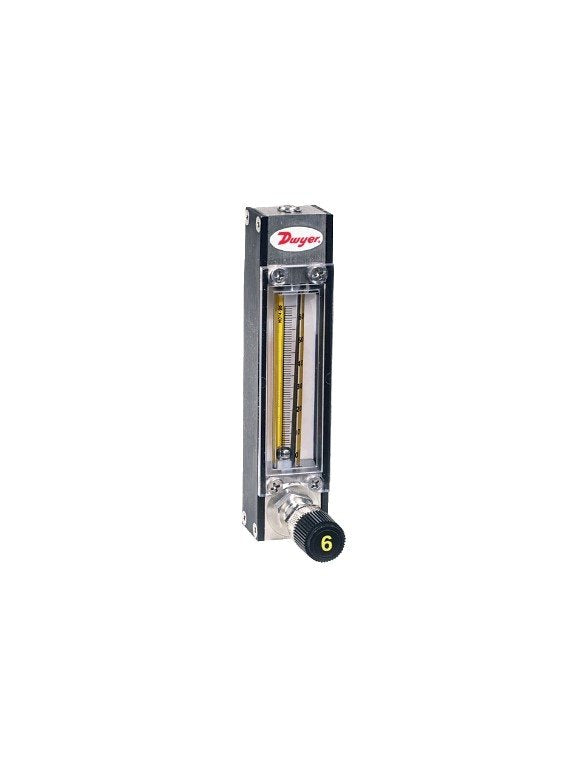

Dwyer VA13417 | Variable Area Glass Flowmeter | Glass float, 13.4 SCFH air, 2.33 GPH water

Part Number : VA13417

Dwyer VA13417: a variable area glass flowmeter carrying a glass float, with maximum flows of 2.33 GPH (147 ml/min) water and 13.4 SCFH (6318 ml/min) air. The VA13417 is supplied assembled for panel mounting and is used for carrier gases, process flow indication and lab or pilot-plant measurement.

  • ±2% FS accuracy and ±0.25% FS repeatability on the VA13417
  • Universal mm scale (65 or 150 mm) plus air and water correlation charts for the VA13417
  • VA13417 flow control: 6-turn needle valve, optional 16-turn high precision metering valve
  • Two 1/8" female NPT ports and a borosilicate flowtube with 10:1 turn-down on the VA13417
  • Vertical mounting; an optional acrylic tripod base turns the VA13417 into a bench unit
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
