Dwyer Instruments VA12419 | Variable area glass flowmeter | Glass float | Max. flow rate 27.9 SCFH (13153 ml/min) air | 4.9 GPH (309 ml/min) water - generaltechuae

Dwyer VA12419 | Variable Area Glass Flowmeter | Glass float, 27.9 SCFH air, 4.9 GPH water

Part Number : VA12419

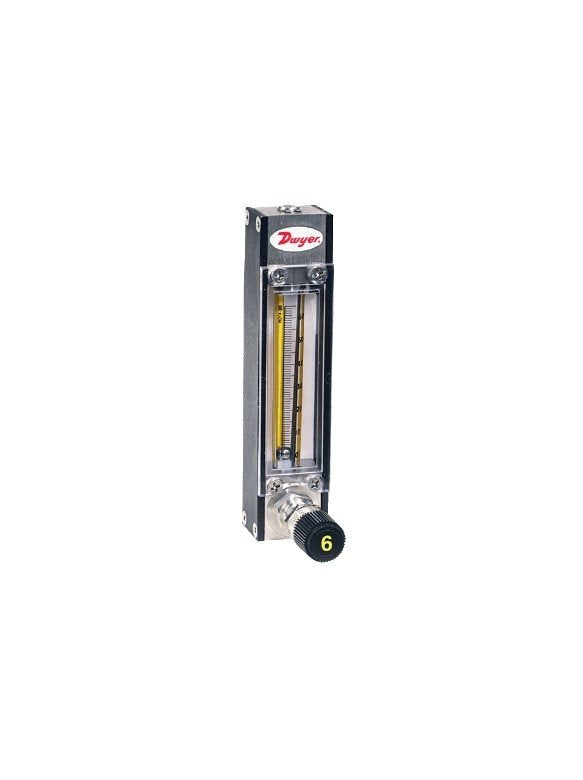

Dwyer VA12419: a variable area glass flowmeter carrying a glass float, with maximum flows of 4.9 GPH (309 ml/min) water and 27.9 SCFH (13153 ml/min) air. The VA12419 is supplied assembled for panel mounting and is used for carrier gases, process flow indication and lab or pilot-plant measurement.

  • VA12419 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia; repeatability ±0.25% FS
  • VA12419 reads on a universal mm scale, with correlation charts for air and water
  • Needle valve (6-turn) fitted to the VA12419, with a 16-turn precision valve as an option
  • VA12419 connections: two 1/8" female NPT; borosilicate glass flowtube; 10:1 turn-down
  • VA12419 mounts vertically, or on an optional acrylic tripod base for bench use
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
